Rocker Panel Front Molding Replacement (Outlook)

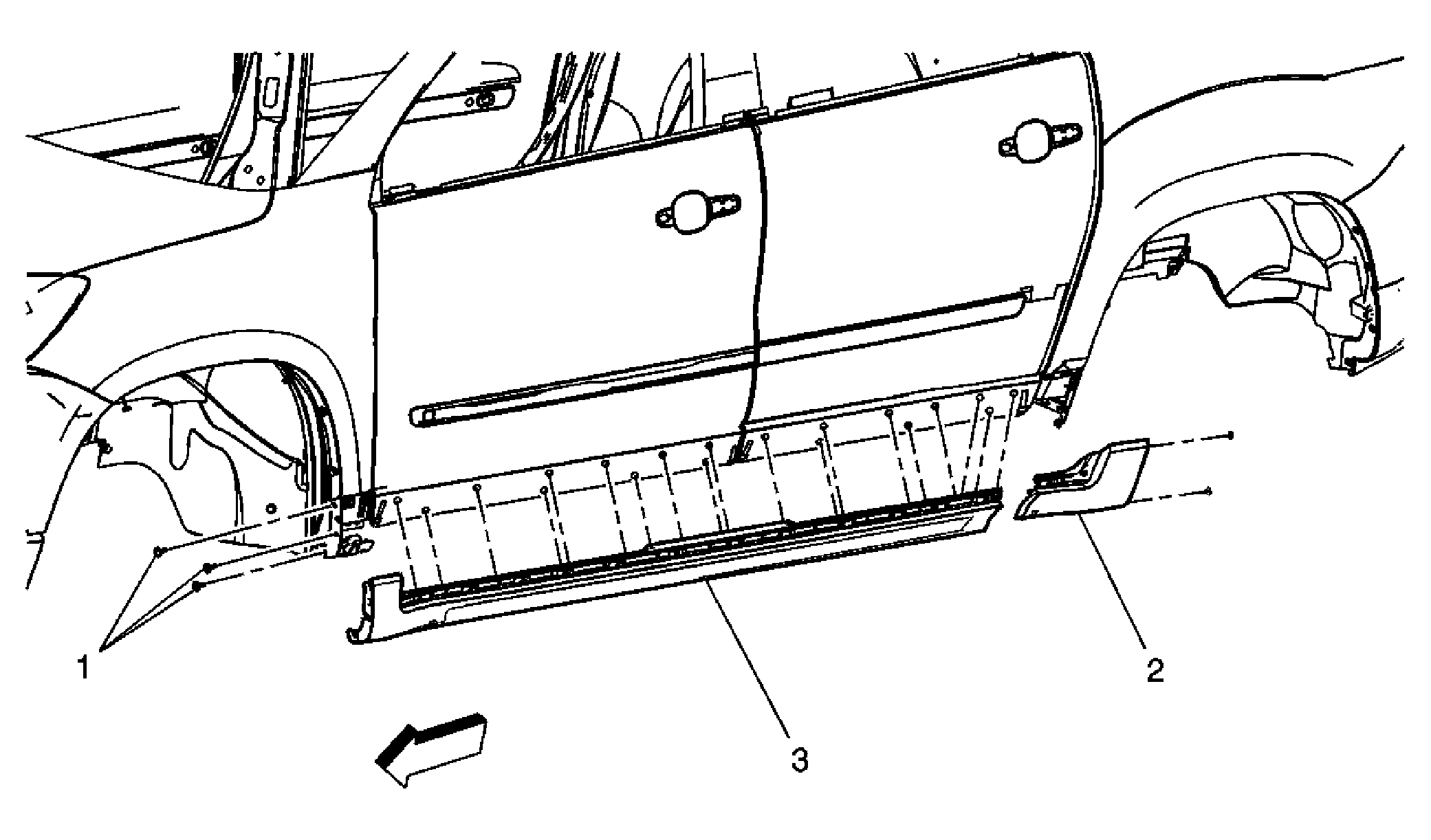

Fig 1: View Of Lower Front Rocker Panel Molding (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open both side doors in order to remove the rocker panel front molding assembly.
1	Rocker Panel Finish Panel Screw (Qty: 3) NOTE: Refer to Fastener Notice . Procedure Remove the rocker panel rear molding assembly. Remove the 3 front finish panel screws. Release the 7 lower rocker molding retainers. Release the 12 upper retainers. Tighten: 1.5 N.m (13 lb in)
2	Rocker Panel Rear Molding Assembly Tighten: 1.5 N.m (13 lb in)
3	Rocker Panel Front Molding Assembly Tip: Replace the retainer clips as needed.
