Headlamp Switch Replacement

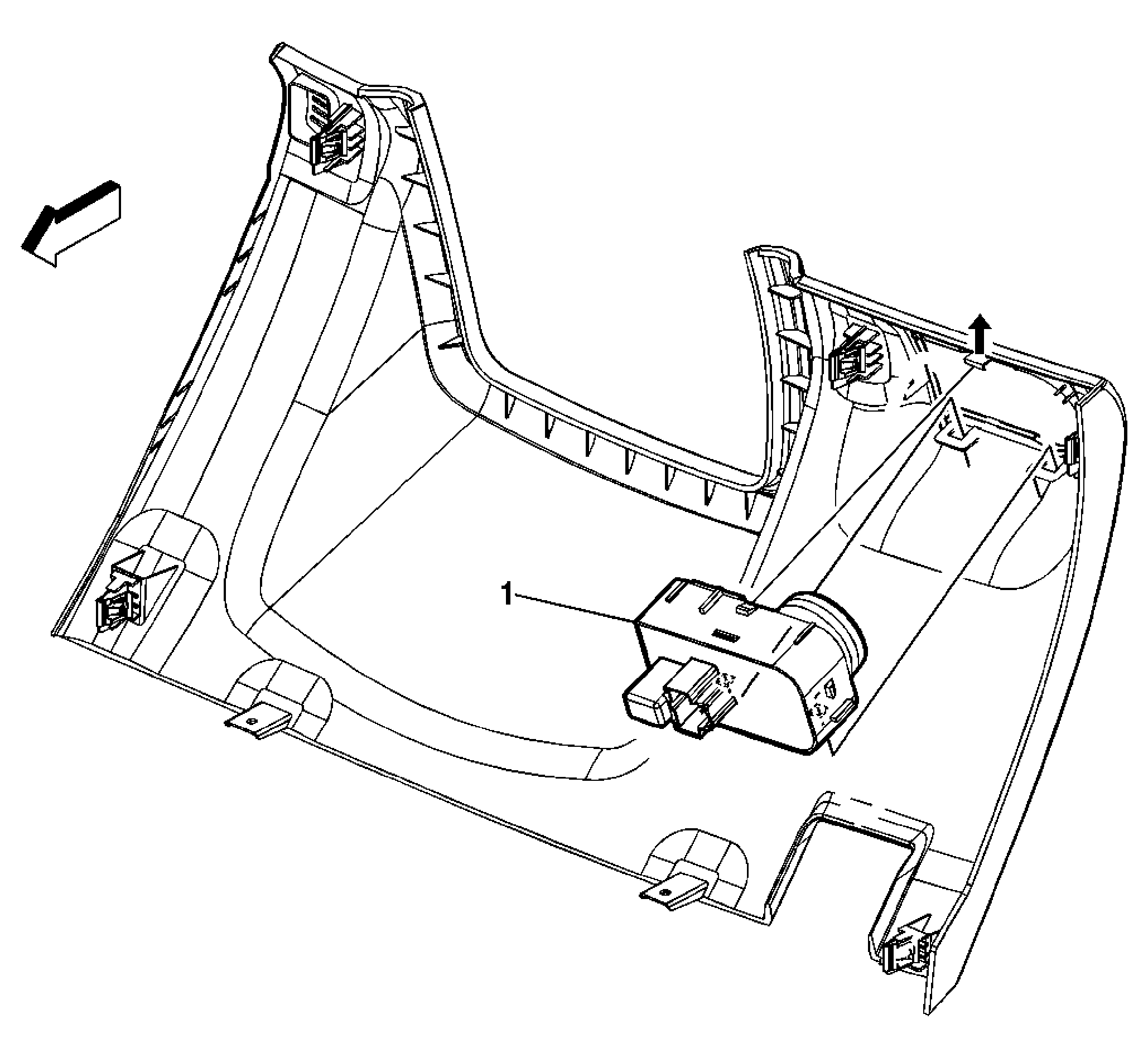

Fig 1: View Of Headlamp Switch
GM1855475Courtesy of GENERAL MOTORS CORP.
Headlamp Switch Replacement

Callout Component Name
Preliminary Procedure:
Remove the knee bolster panel. Refer to Knee Bolster Replacement .
1 Headlamp Switch Assembly
