Rear Seat Cushion Frame Replacement (Extended Cab with AM7)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

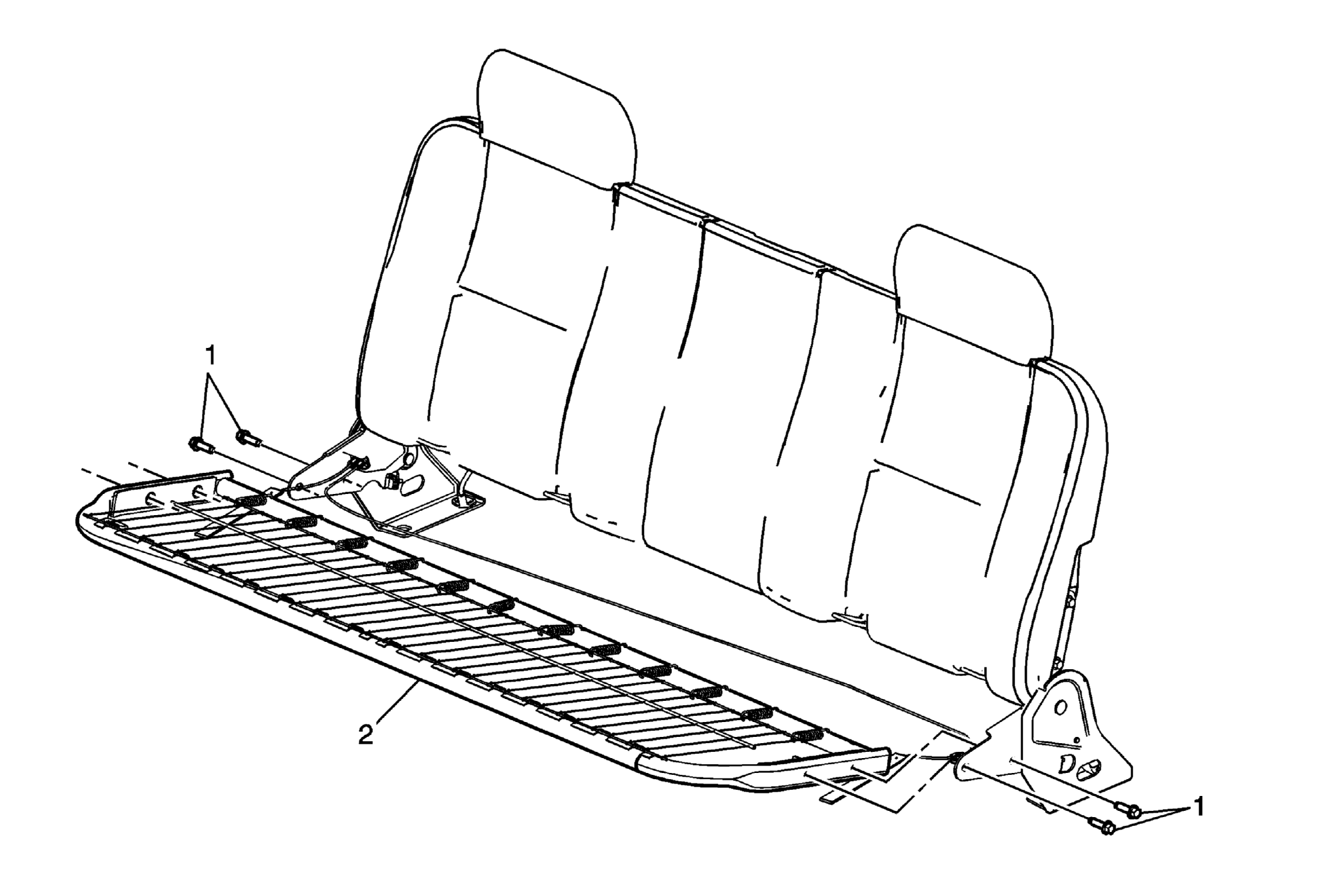

Fig 1: Rear Seat Cushion Frame (Extended Cab with AM7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bench seat. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) . Remove the rear seat back recliner cover. Refer to Rear Seat Back Recliner Cover Replacement (Extended Cab with A68) or Rear Seat Back Recliner Cover Replacement (Crew Cab with A68) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Cushion Cover and Pad Replacement (Extended Cab with A68) or Rear Seat Cushion Cover and Pad Replacement (Crew Cab with A68) .
1	Rear Seat Cushion Frame Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb ft)
2	Rear Seat Cushion Frame

Callout

Component Name

Preliminary Procedures

Remove the rear bench seat. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) .
Remove the rear seat back recliner cover. Refer to Rear Seat Back Recliner Cover Replacement (Extended Cab with A68) or Rear Seat Back Recliner Cover Replacement (Crew Cab with A68) .
Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Cushion Cover and Pad Replacement (Extended Cab with A68) or Rear Seat Cushion Cover and Pad Replacement (Crew Cab with A68) .

Rear Seat Cushion Frame Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb ft)

Rear Seat Cushion Frame
