Front Bumper Impact Bar Outer Bracket Replacement (GMC)
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

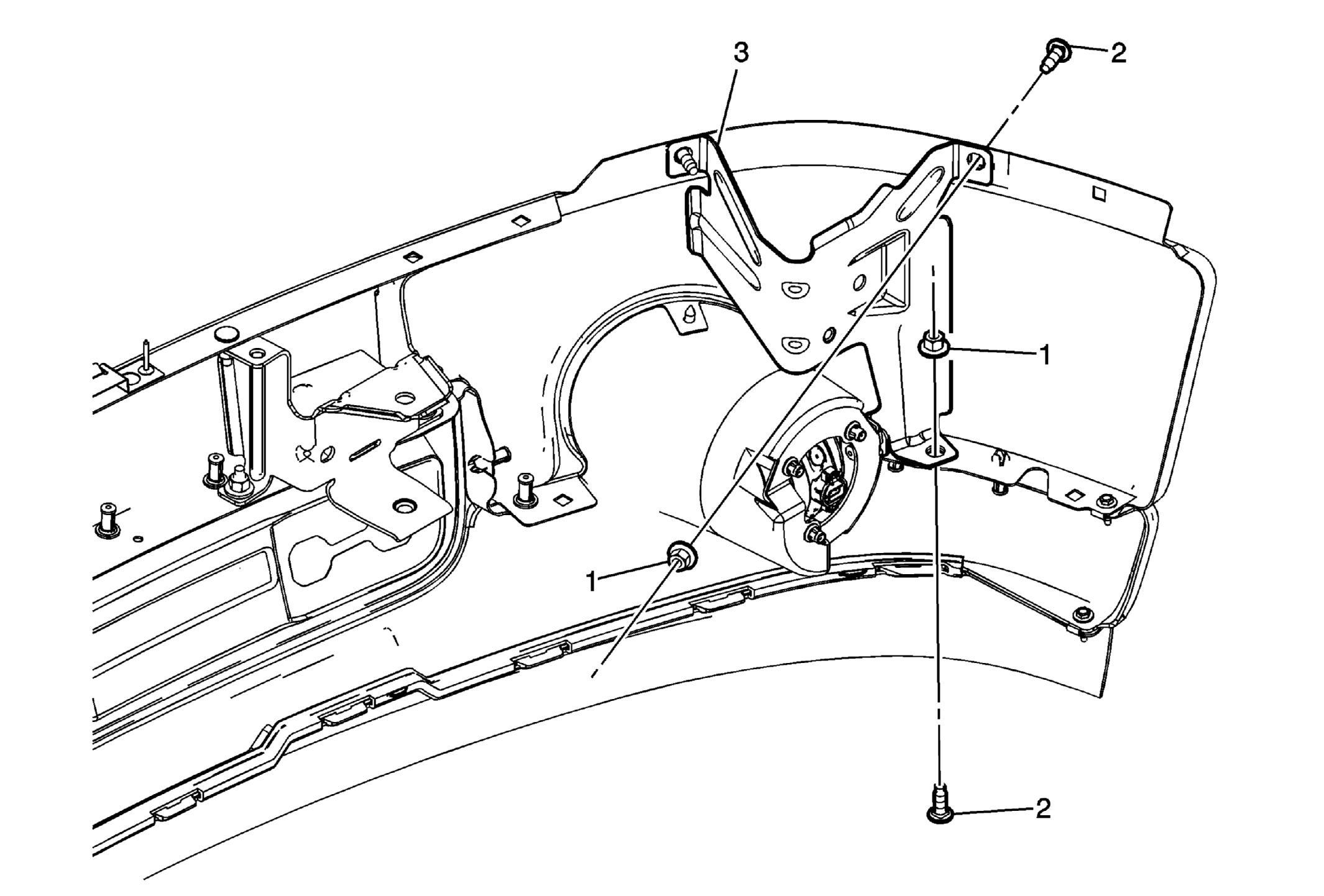

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper impact bar outer reinforcement. Refer to Front Bumper Impact Bar Outer Reinforcement Replacement (GMC) . |
|
| 1 | Front Bumper Impact Bar Outer Bracket Nuts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 50 N.m (37 lb ft) |
| 2 | Front Bumper Impact Bar Outer Bracket Bolts (Qty: 2) |
| 3 | Front Bumper Impact Bar Outer Bracket |
