Front Bumper Impact Bar Bracket Replacement (GMC)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

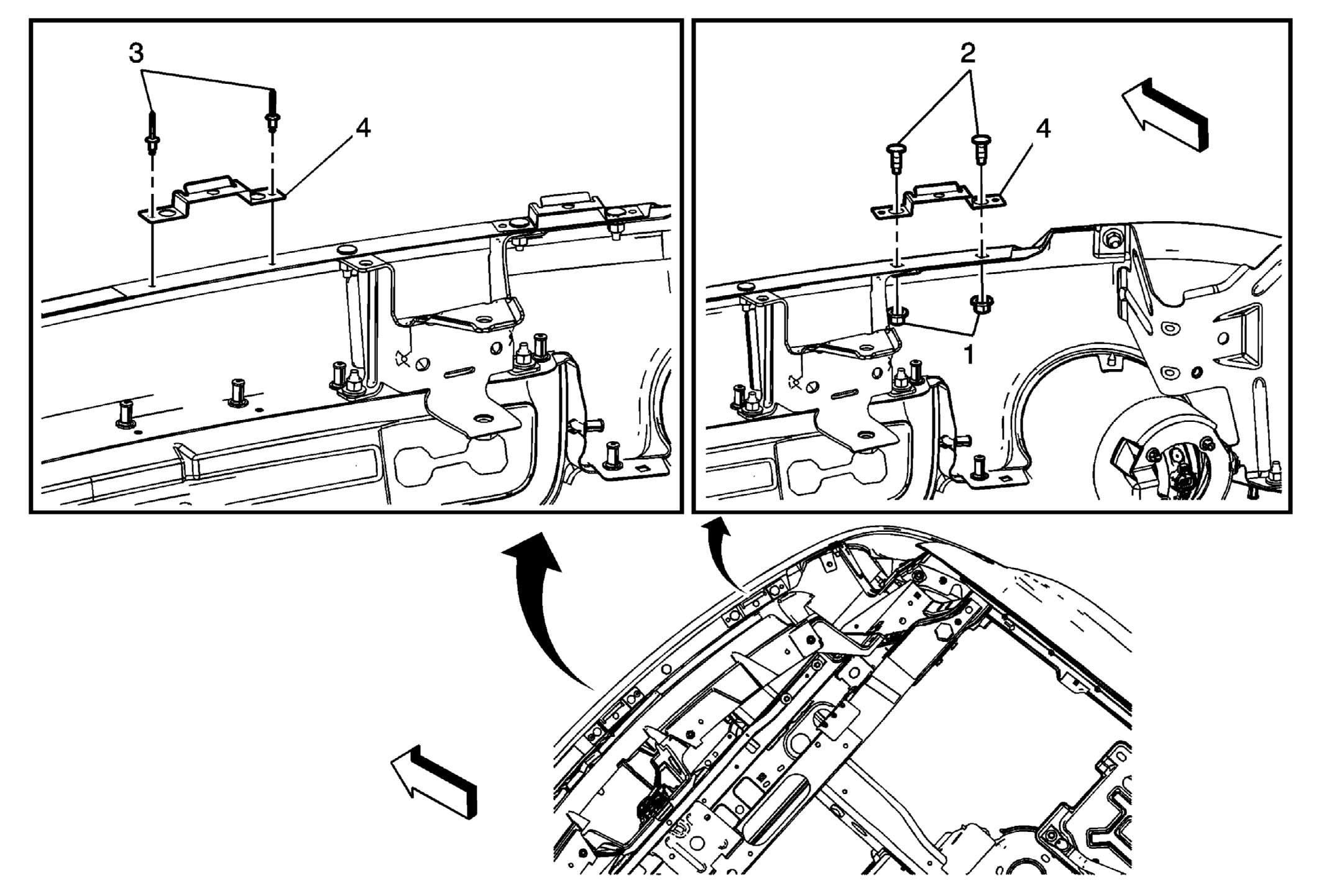

Fig 1: View Of Front Bumper Impact Bar Bracket (GMC)
GM1827473Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) .
  2. Remove the front headlamps. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement (Chevrolet) .
1 Front Bumper Impact Bar Bracket Nut (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  50 N.m (37 lb ft)
2 Front Bumper Impact Bar Bracket Bolt (Qty: 2)
3 Front Bumper Impact Bar Bracket Rivet (Qty: 2)
4 Front Bumper Impact Bar Bracket
