Front Bumper Fascia Outer Support Replacement (GMC)
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

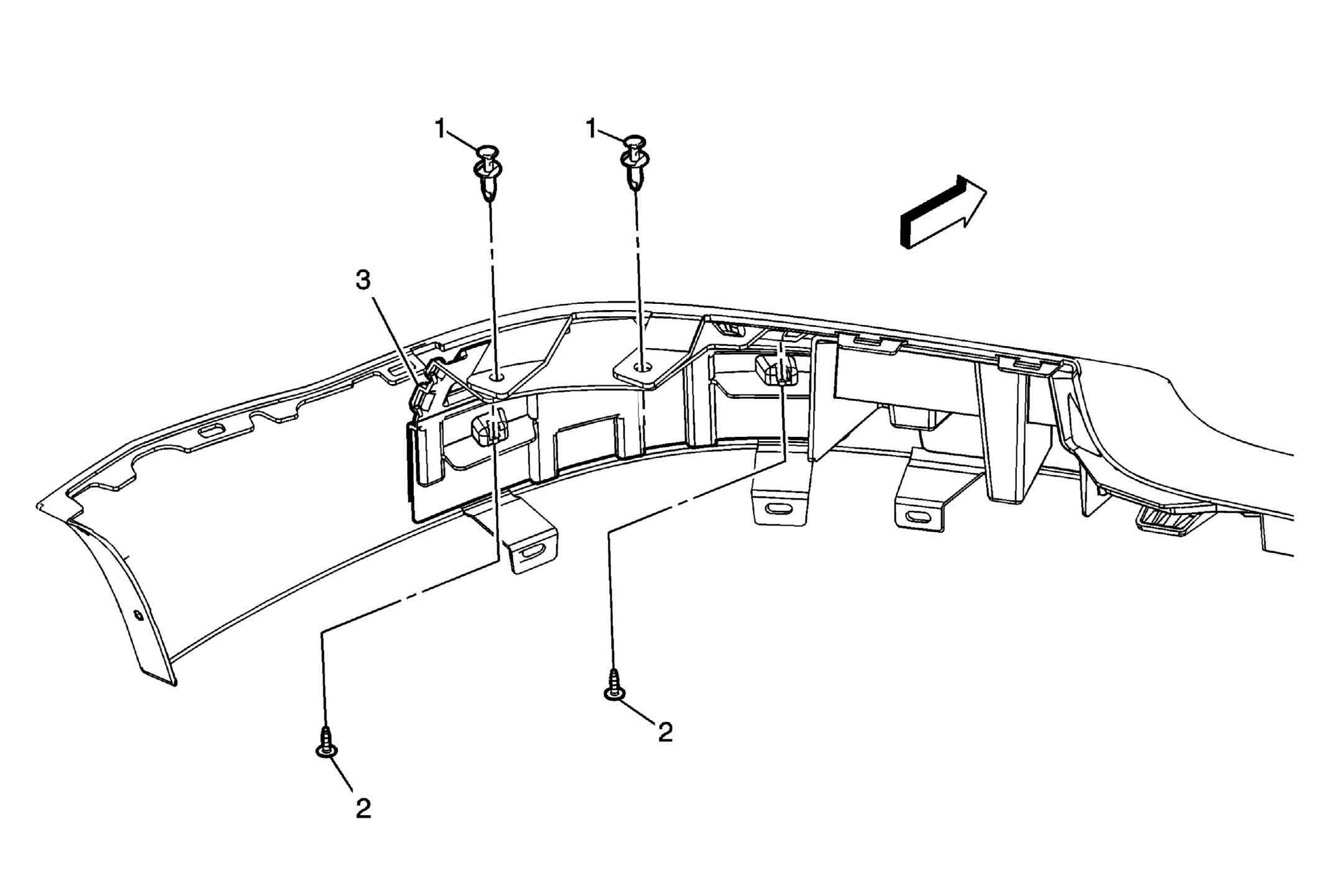

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) . |
|
| 1 | Front Bumper Fascia Outer Support Plastic Retainers (Qty: 2) |
| 2 | Front Bumper Fascia Outer Support Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (27 lb in) |
| 3 | Front Bumper Fascia Outer Support |
