Front Bumper Impact Bar Outer Reinforcement Replacement (GMC)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

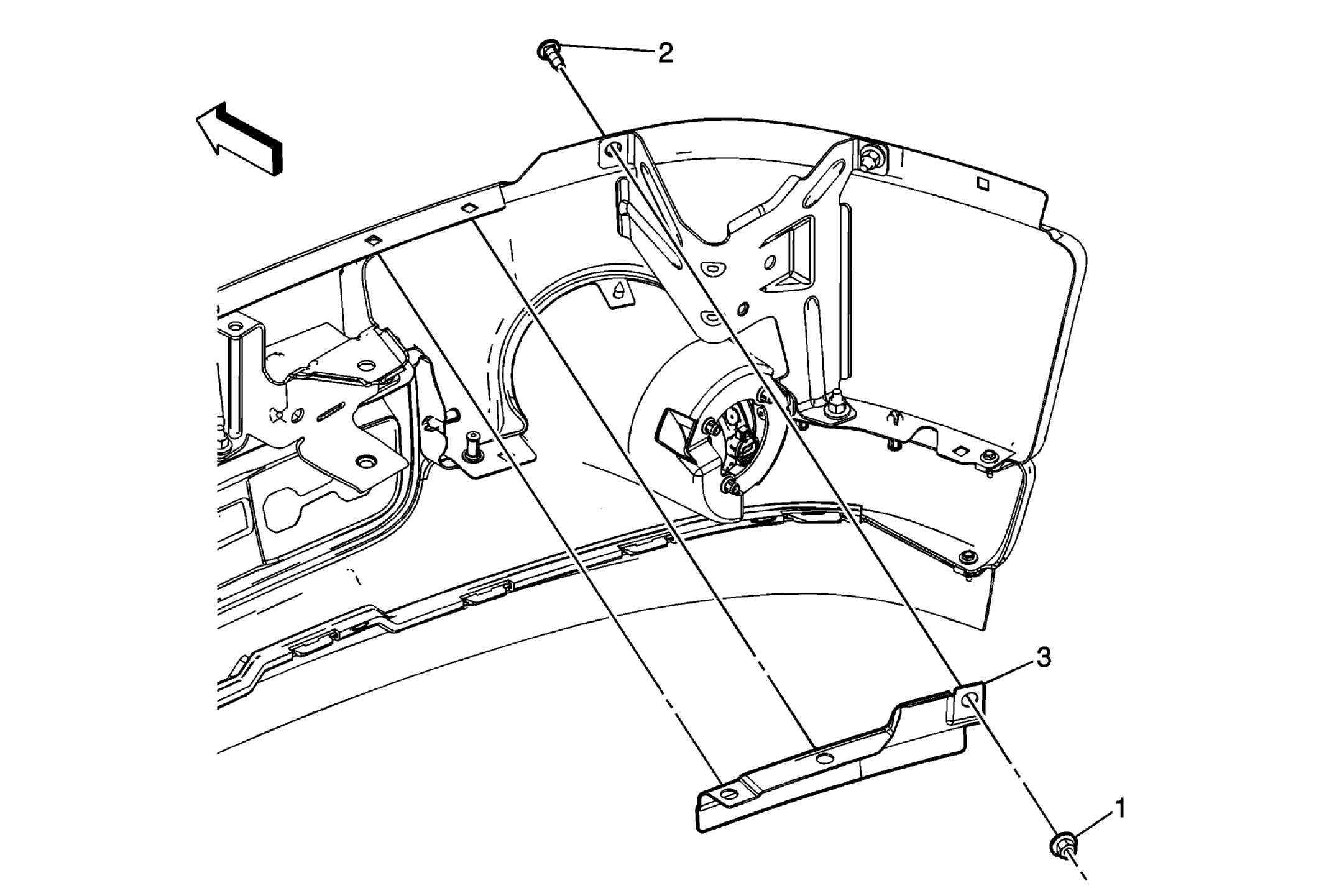

Fig 1: View Of Front Bumper Impact Bar Outer Reinforcement (GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) . Remove the front bumper impact bar bracket. Refer to Front Bumper Impact Bar Bracket Replacement (GMC) .
1	Front Bumper Impact Bar Outer Reinforcement Nut NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Front Bumper Impact Bar Outer Reinforcement Bolt
3	Front Bumper Impact Bar Outer Reinforcement
