Front Bumper Impact Bar Replacement (Chevrolet)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

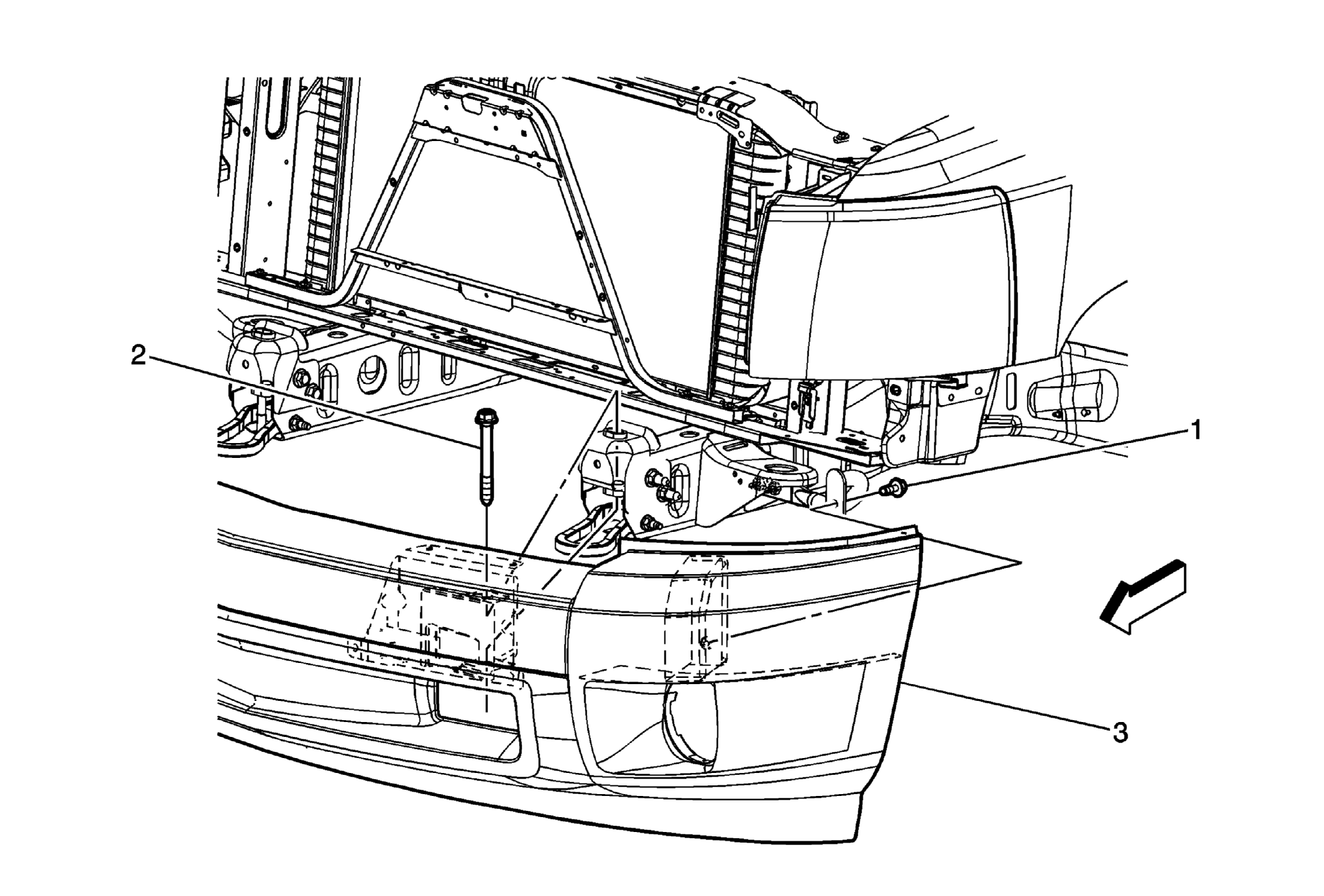

Fig 1: View Of Front Bumper Impact Bar (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator grille. Refer to Radiator Grille Replacement (GMC) or Radiator Grille Replacement (Chevrolet) . Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement - Right Side (Chevrolet) or Front Wheelhouse Liner Replacement - Right Side (GMC) and Front Wheelhouse Liner Replacement - Left Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) .
1	Front Bumper Impact Bar Brace Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Front Bumper Impact Bar Bracket Bolt (Qty: 2) Tighten: 160 N.m (118 lb ft)
3	Front Bumper Impact Bar Tip: Disconnect any electrical connectors. Transfer any parts as needed.
