Front Bumper Impact Bar Inner Bracket Replacement (GMC)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

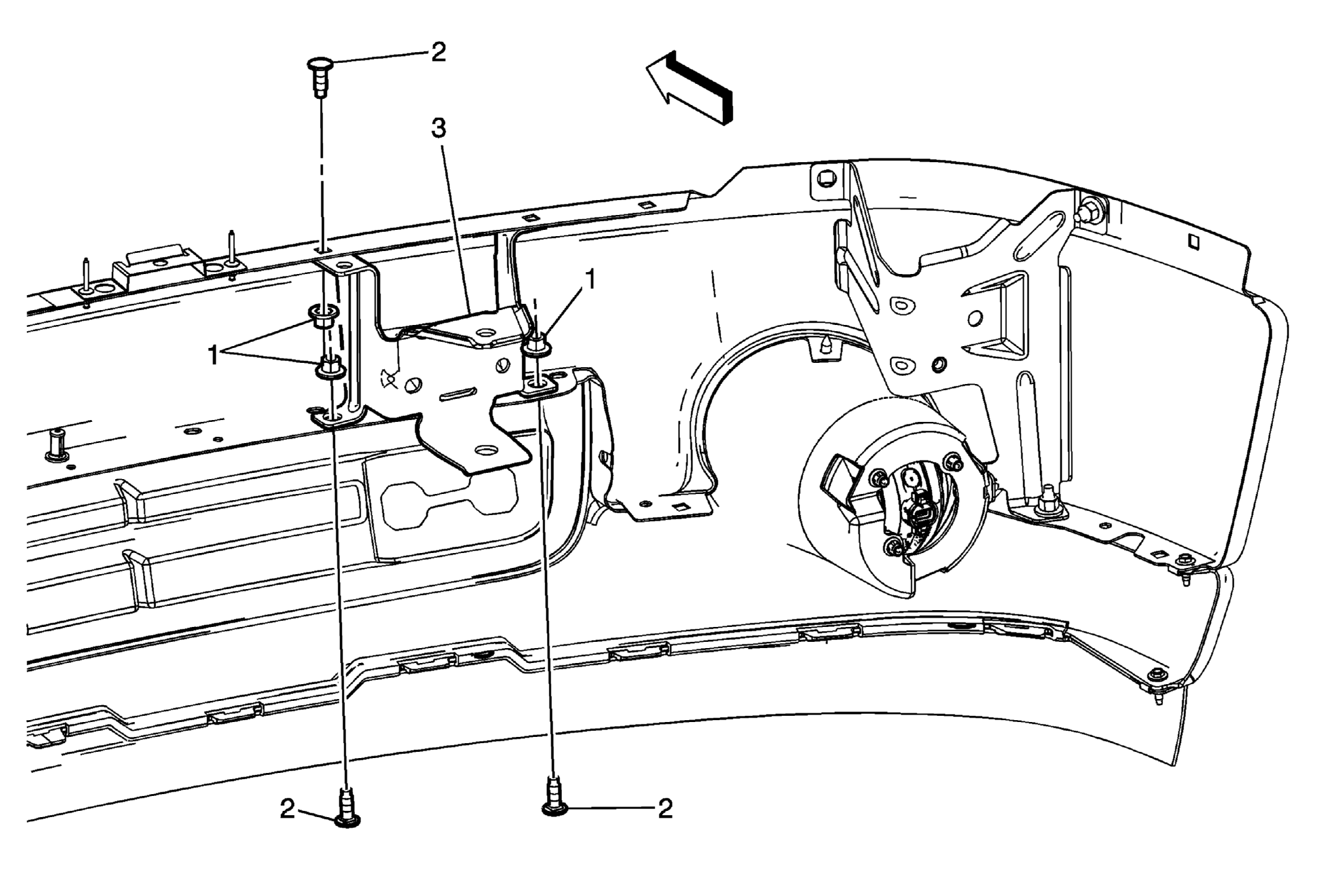

Fig 1: View Of Front Bumper Impact Bar Inner Bracket (GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper impact bar outer reinforcement. Refer to Front Bumper Impact Bar Outer Reinforcement Replacement (GMC) .
1	Front Bumper Impact Bar Inner Bracket Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Front Bumper Impact Bar Inner Bracket Bolts (Qty: 3)
3	Front Bumper Impact Bar Inner Bracket
