Front Bumper End Cap Replacement (Chevrolet)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

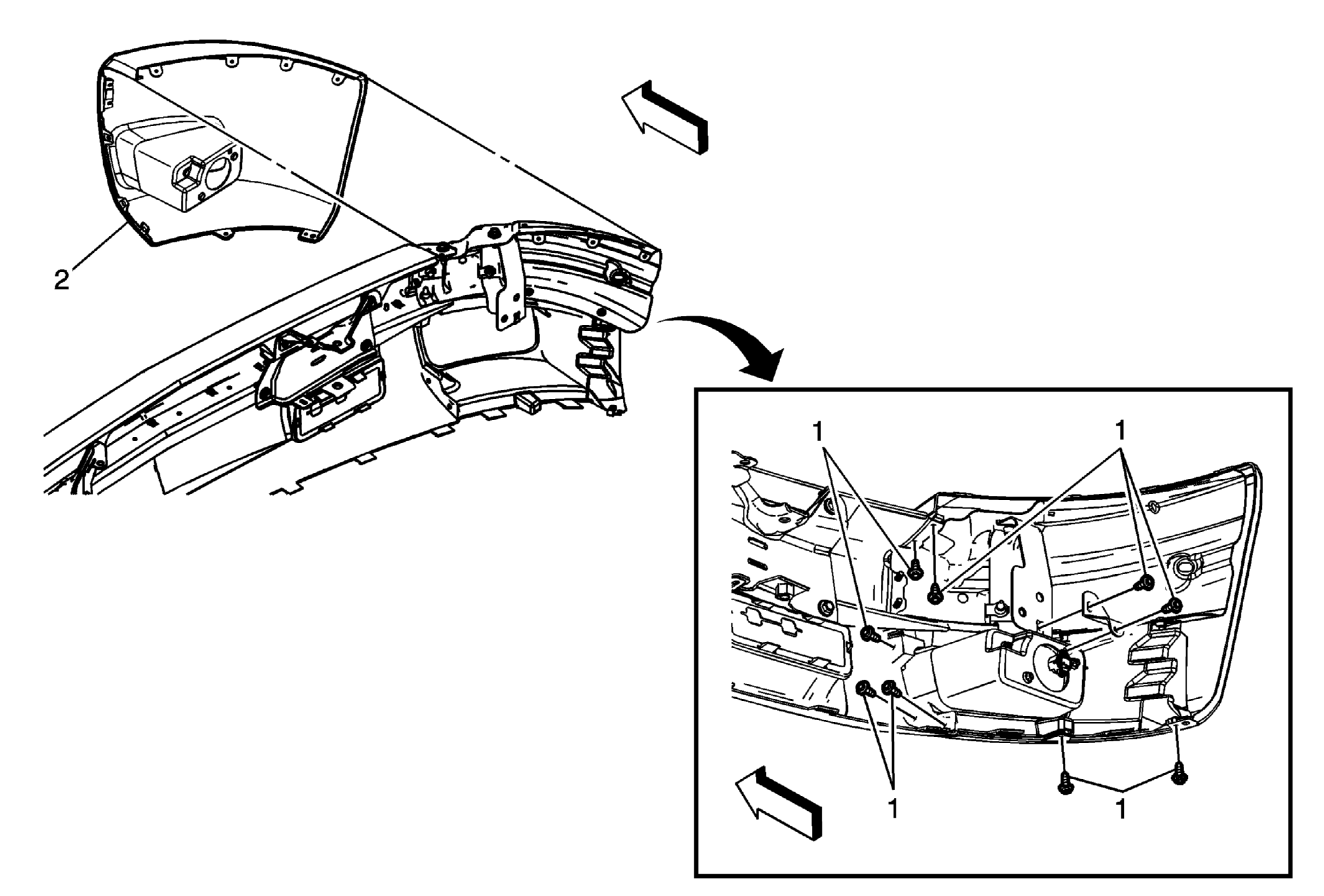

Fig 1: View Of Front Bumper End Cap (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) . Remove the front bumper filler. Refer to Front Bumper Filler Replacement (Chevrolet) .
1	Front Bumper End Cap Bolt (Qty: 9) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Bumper End Cap Tip: Disconnect any electrical connectors. Transfer any parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) .
Remove the front bumper filler. Refer to Front Bumper Filler Replacement (Chevrolet) .

Front Bumper End Cap Bolt (Qty: 9)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Front Bumper End Cap
Tip:

Disconnect any electrical connectors.
Transfer any parts as needed.
