Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the I/P carrier to the vehicle.
  2. Install the wiring harness to the I/P carrier.
    Fig 1: Installing I/P Carrier
    G02422674Courtesy of GENERAL MOTORS CORP.
  3. Install the HVAC air distribution duct to the I/P carrier. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT .
  4. Carefully rotate the I/P carrier up to install the additional components.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the bolts that retain the I/P carrier to the vehicle.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  6. Install the instrument cluster wiring harness to the I/P carrier.
  7. Install the steering column wiring harness to the I/P carrier.
  8. Install the radio, the heater, and the A/C wiring harnesses to the I/P carrier.

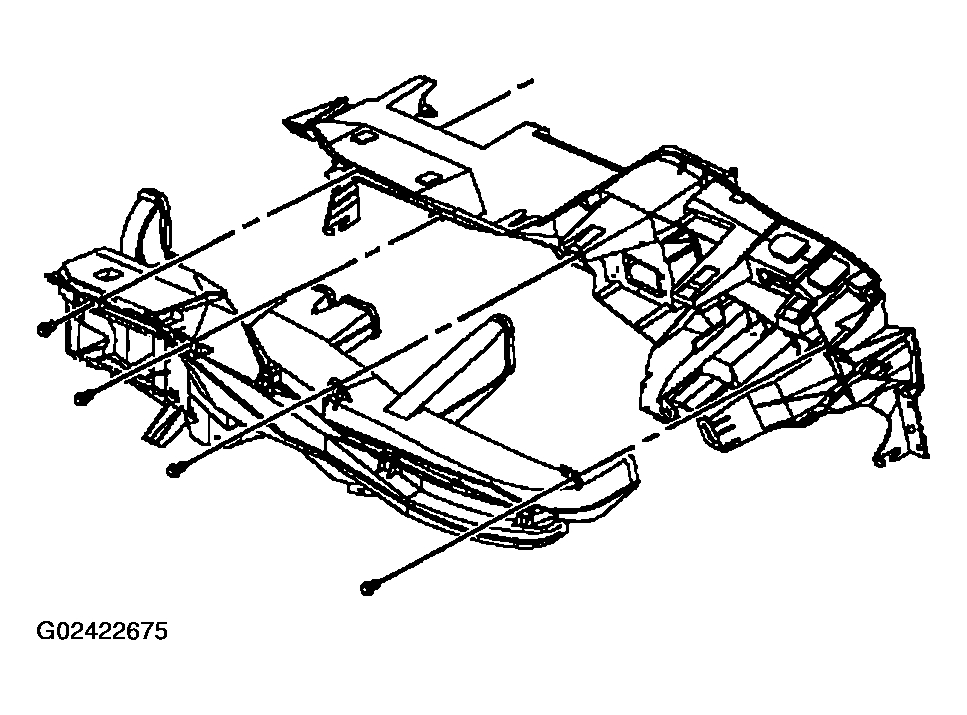

    Fig 2: Installing I/P Carrier Bolts
    G02422675Courtesy of GENERAL MOTORS CORP.
  9. Install the heater and the A/C control. Refer to HVAC CONTROL ASSEMBLY REPLACEMENT .
  10. Install the I/P compartment, if equipped. Refer to Compartment Replacement - Instrument Panel (I/P) .
  11. Install the mounting bracket and radio, if equipped. Refer to RADIO REPLACEMENT .
  12. Install the engine cover. Refer to ENGINE COVER REPLACEMENT .
  13. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  14. Install the passenger side SIR module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  15. Install the right hinge pillar trim panel. Refer to TRIM REPLACEMENT -- HINGE PILLAR .
  16. Install the left hinge pillar trim panel. Refer to TRIM REPLACEMENT -- HINGE PILLAR .
  17. Install the instrument cluster assembly. Refer to Instrument Panel Cluster (IPC) Replacement .
  18. Install the I/P cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  19. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .
  20. Install the left knee bolster. Refer to Knee Bolster Replacement - Left .
  21. Install the left knee bolster bracket. Refer to Knee Bolster Bracket Replacement - Left .
  22. Enable the SIR system. Refer to ZONE 3 and ZONE 5 .
  23. Install the right knee bolster bracket. Refer to Knee Bolster Bracket Replacement - Right .
  24. Install the BCM. Refer to BODY CONTROL MODULE REPLACEMENT .
  25. Install the right knee bolster. Refer to Knee Bolster Replacement - Right .
  26. Connect the battery negative cable(s). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
