Removal & Installation (Passenger-side)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. SeeZONE 5 andZONE 9 under DISABLING & ACTIVATING AIR BAG SYSTEM.
Release tabs holding Body Control Module (BCM) to bracket, located below passenger-side air bag module. Remove BCM. Remove instrument panel trim pad. See INSTRUMENT PANEL TRIM PAD . Remove upper and lower passenger-side air bag module mounting bolts. See Fig 1. Remove passenger-side air bag module from instrument panel.
To install, reverse removal procedure. Install lower bolts finger tight, then install upper bolts finger tight. Tighten passenger-side air bag module mounting bolts and knee bolster bracket nuts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. SeeZONE 5 andZONE 9 under DISABLING & ACTIVATING AIR BAG SYSTEM.

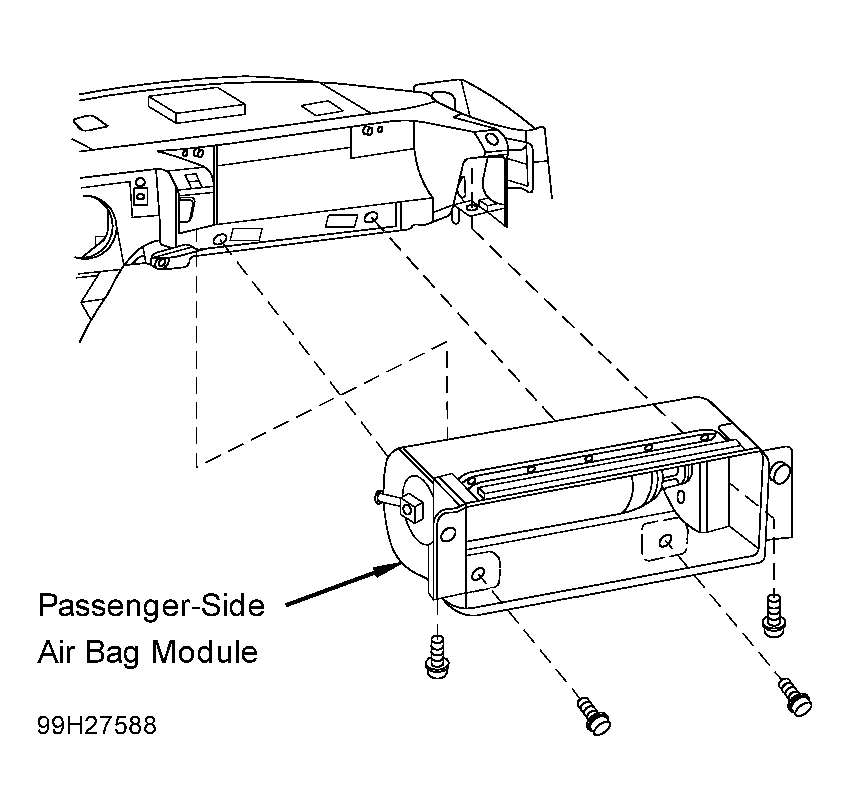

Fig 1: Identifying Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
