4-5-6 Clutch Piston Removal
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

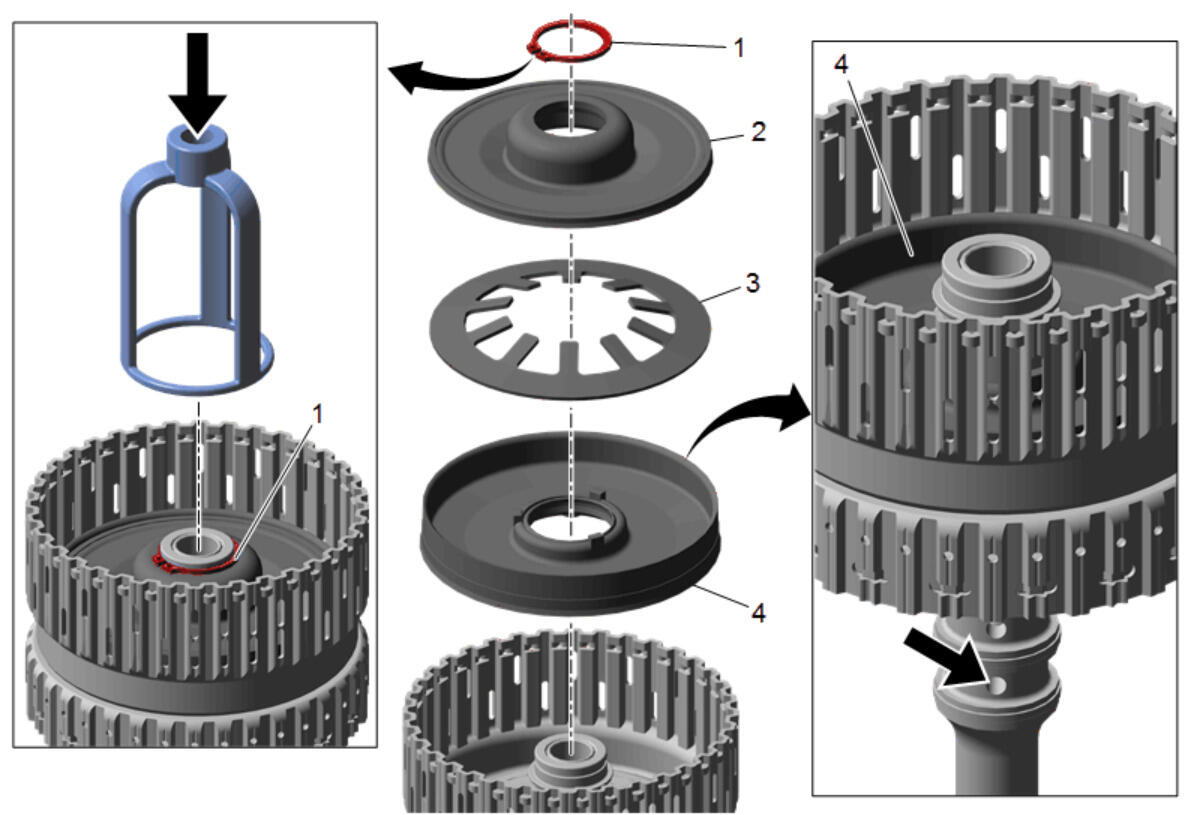

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Clutch Piston Dam Retaining Ring
CAUTION:
Use care when compressing the 4-5-6 clutch piston assembly, spring and dam assembly. Compressing the dam assembly too much may damage it.
CAUTION:
Refer to Retaining Ring Reuse Caution
. Special Tool: J 43074 Clutch Spring Compressor. See Special Tools . |
| 2 | 4-5-6 Clutch Piston Dam Assembly Tip: It may be necessary to apply air pressure to remove the dam and piston. |
| 3 | 4-5-6 Clutch Spring |
| 4 | 4-5-6 Clutch Piston Assembly Tip: It may be necessary to apply air pressure to remove the piston. |
