4-5-6 Clutch Piston Installation
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

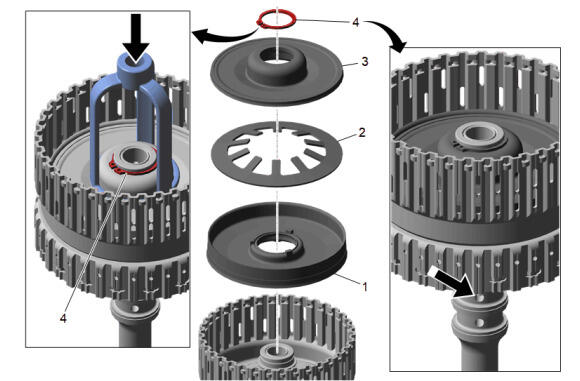

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Clutch Piston Assembly |
| 2 | 4-5-6 Clutch Spring
CAUTION:
Ensure the spring tabs are facing up during installation. Failure to do so may cause damage to the clutch assembly.
|
| 3 | 4-5-6 Clutch Piston Dam Assembly Tip: Lubricate the inner and outer sealing surfaces of the dam assembly with automatic transmission fluid (ATF) in order to ease installation into the piston. |
| 4 | 4-5-6 Clutch Piston Dam Retaining Ring
CAUTION:
Use care when compressing the 4-5-6 clutch piston assembly, spring and dam assembly. Compressing the dam assembly too much may damage it.
CAUTION:
Refer to Retaining Ring Reuse Caution
. Tip: Apply air to verify proper installation of all 4-5-6 clutch components. The piston should apply and release smoothly. Special Tool: J 43074 Clutch Spring Compressor. See Special Tools . |
