1-2-3-4 and 3-5 Reverse Clutch Bearing Assembly Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

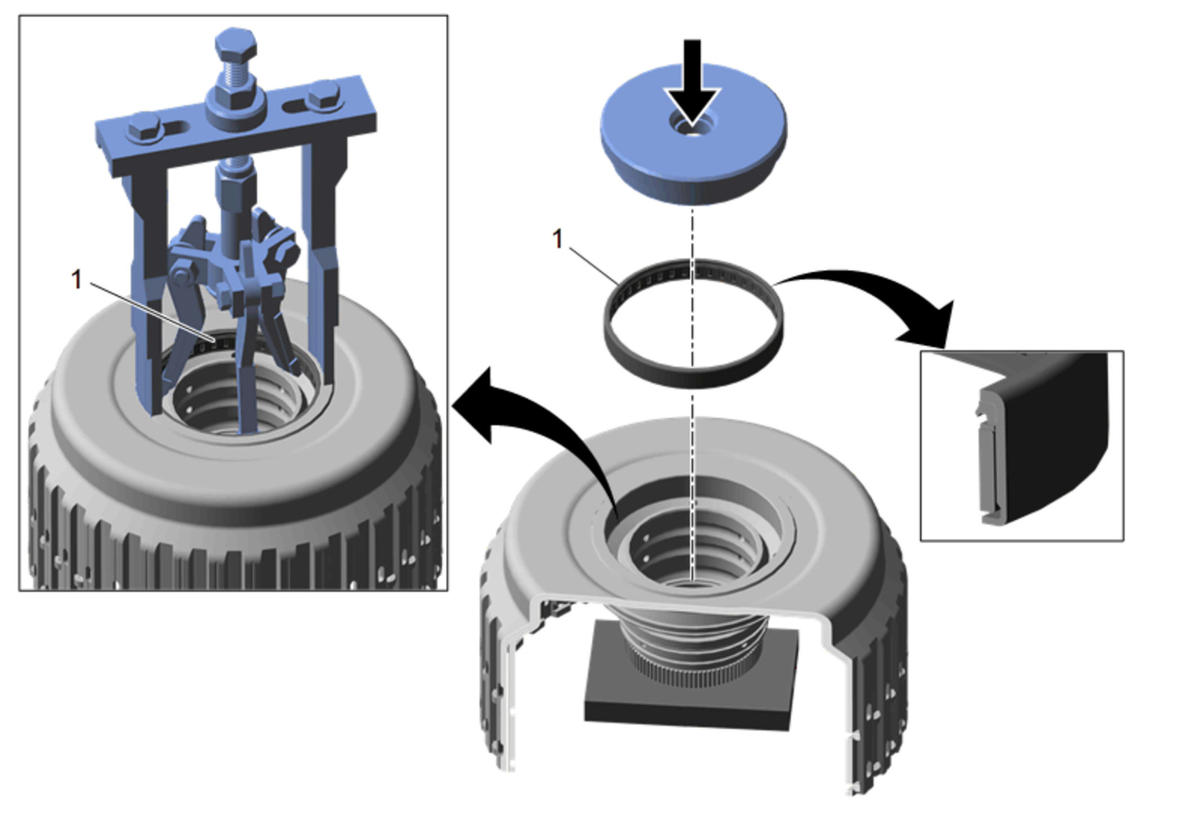

Fig 1: 1-2-3-4 & 3-5 Reverse Clutch Bearing Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	3-5 Reverse Clutch Bearing CAUTION: Install the NEW bearing assembly with the seal side up. Improper installation of the bearing may cause damage to the transmission. CAUTION: Do not use a hammer or other striking tool that may cause damage to the bearing and housing. Use care to ensure the bearing is installed slowly and evenly using an arbor press. CAUTION: Do not reuse the bearing. Install a NEW bearing. Reusing an old bearing may cause damage to the transmission. Specification: Install the bearing flush to 0.3 mm below the thrust surface. Special Tools DT 47865: Bearing Remover DT 47866: Bearing Installer J 45124: Removal Bridge For equivalent regional tools, refer to Special Tools .

Callout

Component Name

3-5 Reverse Clutch Bearing

CAUTION: Install the NEW bearing assembly with the seal side up. Improper installation of the bearing may cause damage to the transmission.

CAUTION: Do not use a hammer or other striking tool that may cause damage to the bearing and housing. Use care to ensure the bearing is installed slowly and evenly using an arbor press.

CAUTION: Do not reuse the bearing. Install a NEW bearing. Reusing an old bearing may cause damage to the transmission.

Specification: Install the bearing flush to 0.3 mm below the thrust surface.

Special Tools

DT 47865: Bearing Remover
DT 47866: Bearing Installer
J 45124: Removal Bridge

For equivalent regional tools, refer to Special Tools .
