1-2-3-4 Clutch Plate Installation

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

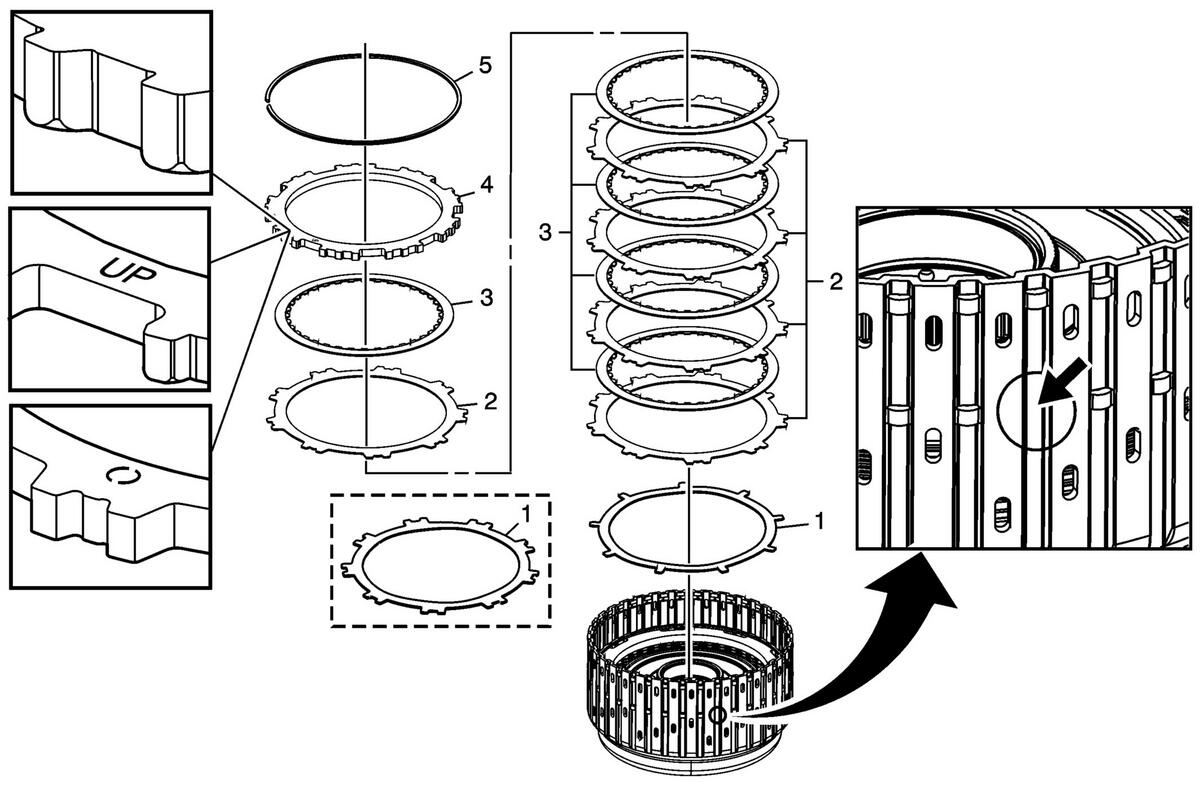

Fig 1: 1-2-3-4 Clutch Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	1-2-3-4 Clutch (Waved) Plate CAUTION: Ensure an opening between the external splines of the waved plate is centered over the missing snap ring groove punch in the housing. Failure to do so may cause damage to the clutch assembly.
2	1-2-3-4 Clutch Plate (Qty: 5) CAUTION: Ensure all clutch plates are centered in the housing. When installing the first steel clutch plate, ensure an opening between the external splines is centered over the missing snap ring groove punch in the housing. Align the external splines of each remaining steel clutch plate with the first steel clutch plate. Failure to do so may cause damage to the clutch assembly.
3	1-2-3-4 Clutch Plate Assembly (Qty: 5)
4	1-2-3-4 Clutch Backing Plate CAUTION: Align the external splines of the backing plate with the external splines of the steel clutch plates. Failure to do so may cause damage to the clutch assembly.
5	1-2-3-4 Clutch Backing Plate Retaining Ring CAUTION: Depending on the housing configuration, align the retaining ring gap with the missing snap ring groove punch in the housing or the offset punch in the housing. Failure to do so may cause damage to the clutch assembly. Tip: After the retaining ring is installed, determine clutch piston travel in order to verify if the correct selective retaining ring is being used. Refer to 1-2-3-4 Clutch Backing Plate Retaining Ring Measurement .
