Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission, if equipped. Refer to TRANSMISSION .

    Important:  Note the position and direction of the engine flywheel before removal.

  2. Remove the engine flywheel bolts.
  3. Remove the automatic transmission engine flywheel.
  4. Clean and inspect the engine flywheel. Refer to Engine Flywheel Cleaning and Inspection .
  5. Install 2 M11x1.5 mm bolts (1) to the threaded holes of the spacer, if applicable.
  6. Rotate the bolts clockwise to remove the spacer.

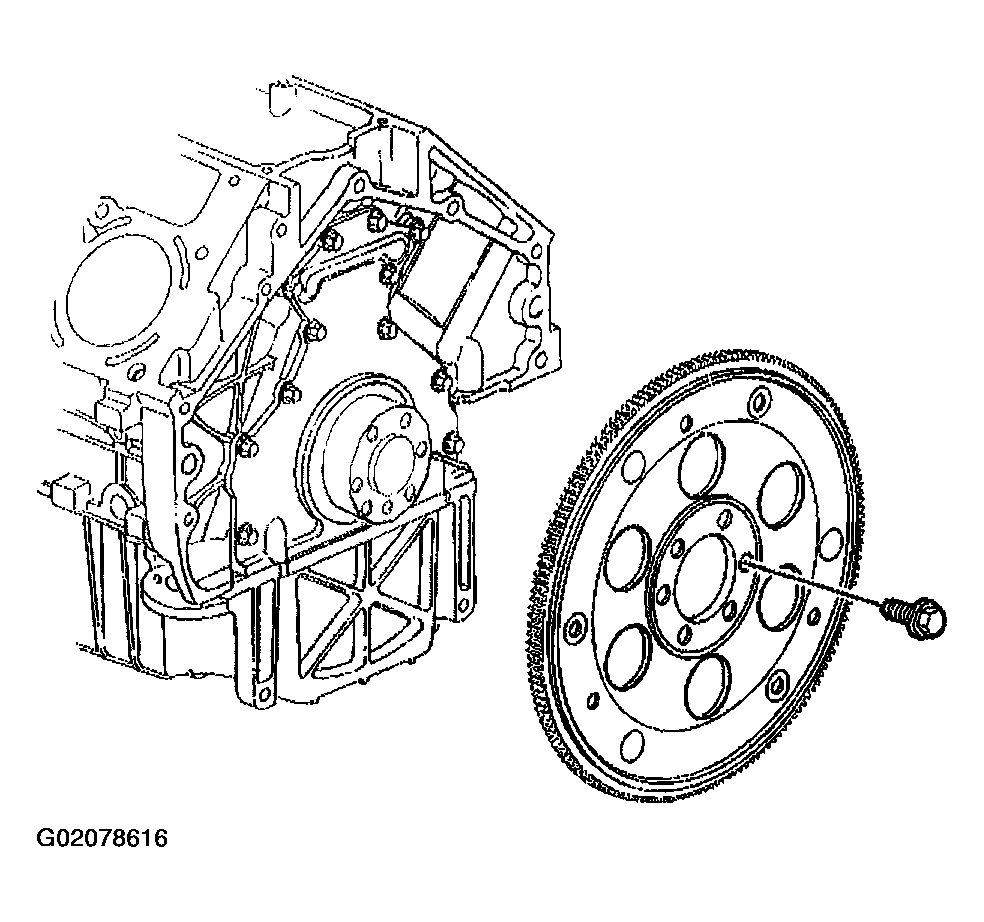

    Fig 1: Removing Bolts & Engine Flywheel
    G02078616Courtesy of GENERAL MOTORS CORP.
  7. Remove the spacer from the rear of the crankshaft, if applicable.

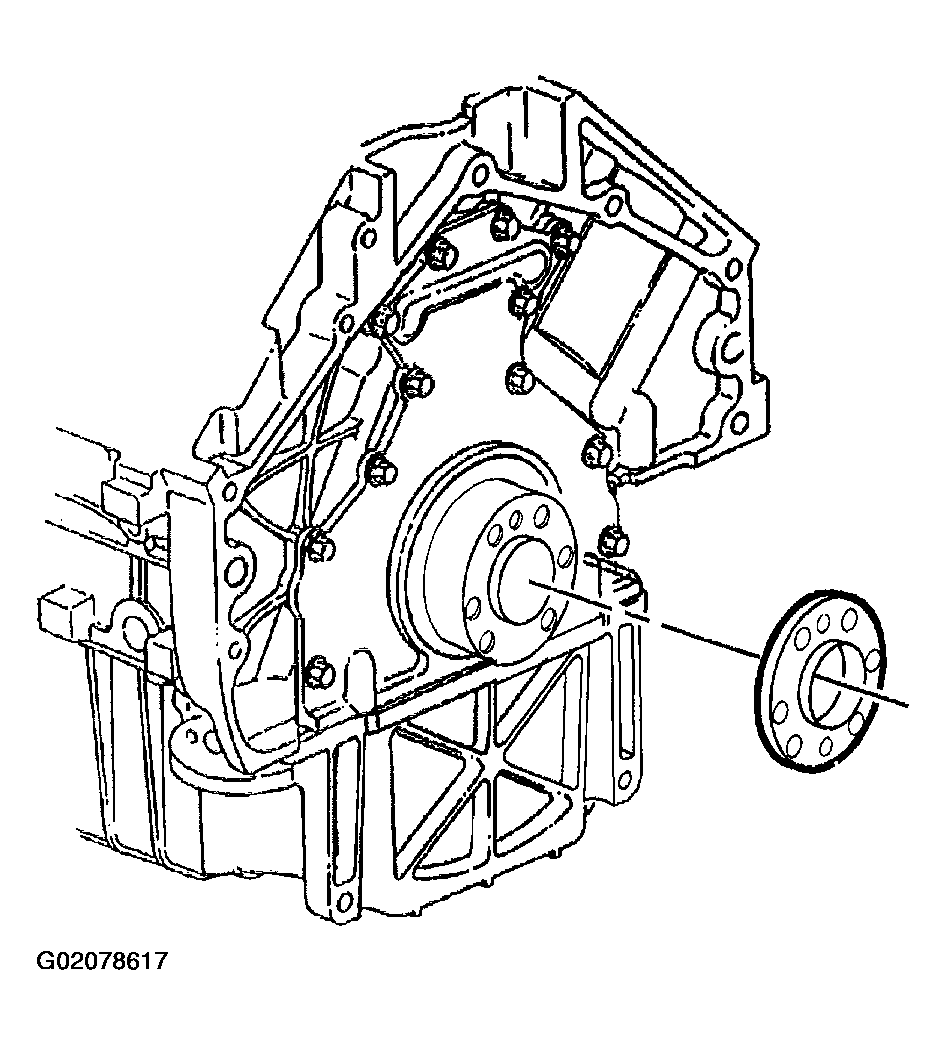

    Fig 2: Removing Spacer From Rear Of Crankshaft
    G02078617Courtesy of GENERAL MOTORS CORP.
