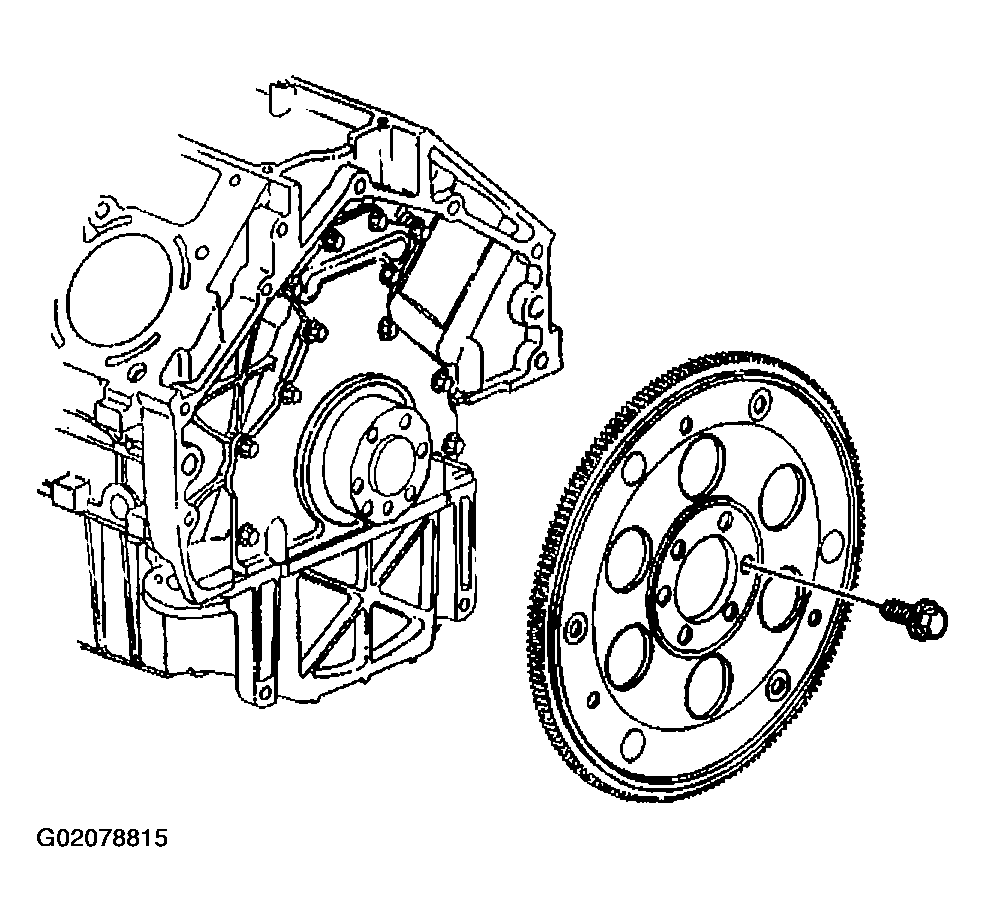

Engine Flywheel Cleaning and Inspection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the flywheel in solvent.
- Dry the flywheel with compressed air.
- Inspect the automatic transmission flywheel for the following conditions:
- Damaged ring gear teeth
- Stress cracks around the flywheel-to-crankshaft bolt hole locations
Important: Do not attempt to repair the welded areas that retain the ring gear to the flywheel plate. Install a new flywheel.
- Welded areas that retain the ring gear onto the flywheel for cracking
