Front Bumper Impact Bar Replacement (GMC)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

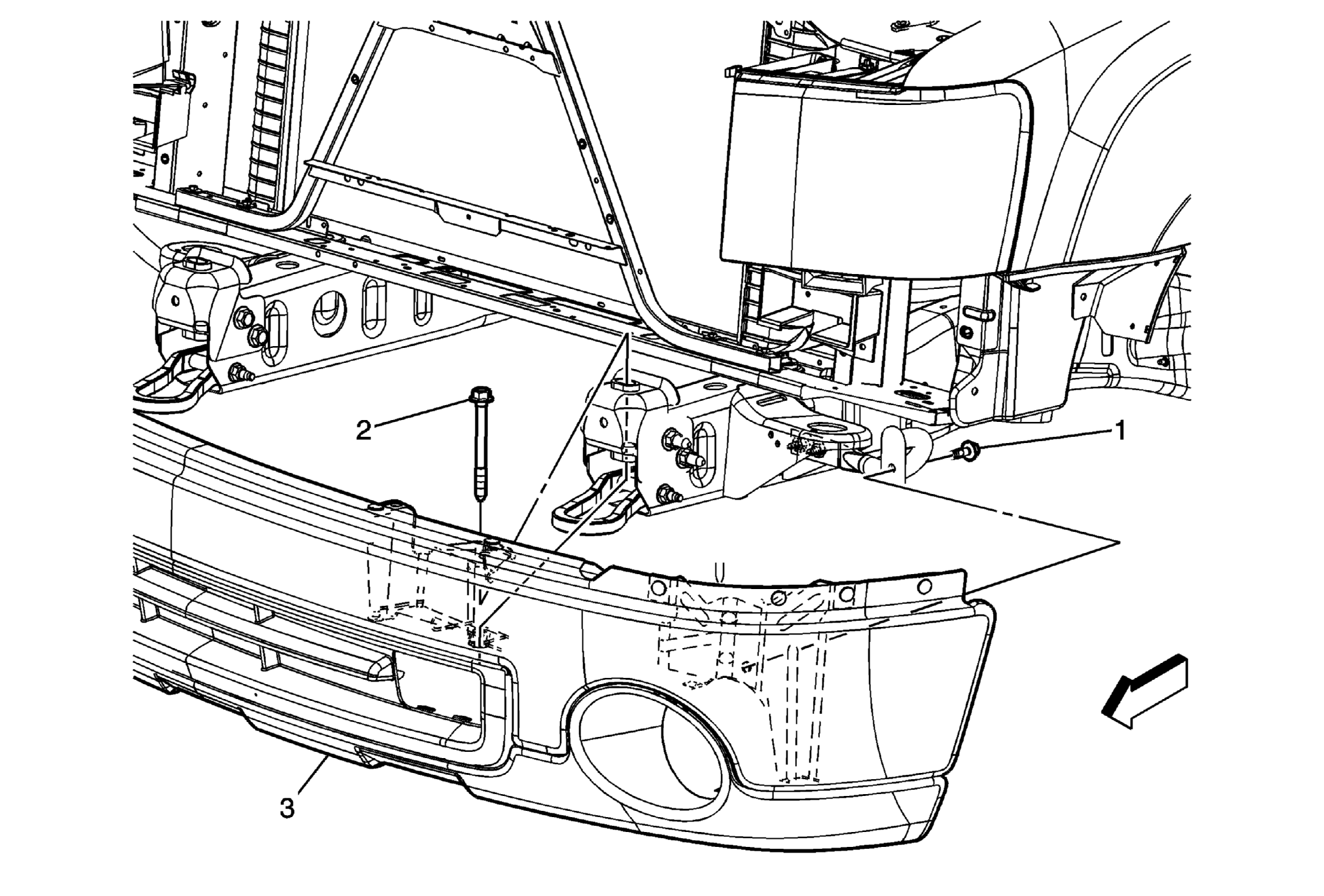

Fig 1: View Of Front Bumper Impact Bar (GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the radiator grille. Refer to Radiator Grille Replacement (Chevrolet) or Radiator Grille Replacement (GMC) .
1	Front Bumper Impact Bar Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 55 N.m (41 lb ft)
2	Front Bumper Impact Bar Bracket Bolt (Qty: 2) Tighten: 160 N.m (118 lb ft)
3	Front Bumper Impact Bar Tip: Remove push pins retainer radiator air baffle. Disconnect any electrical connectors. Transfer any parts as needed.
