Vehicle Speed Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

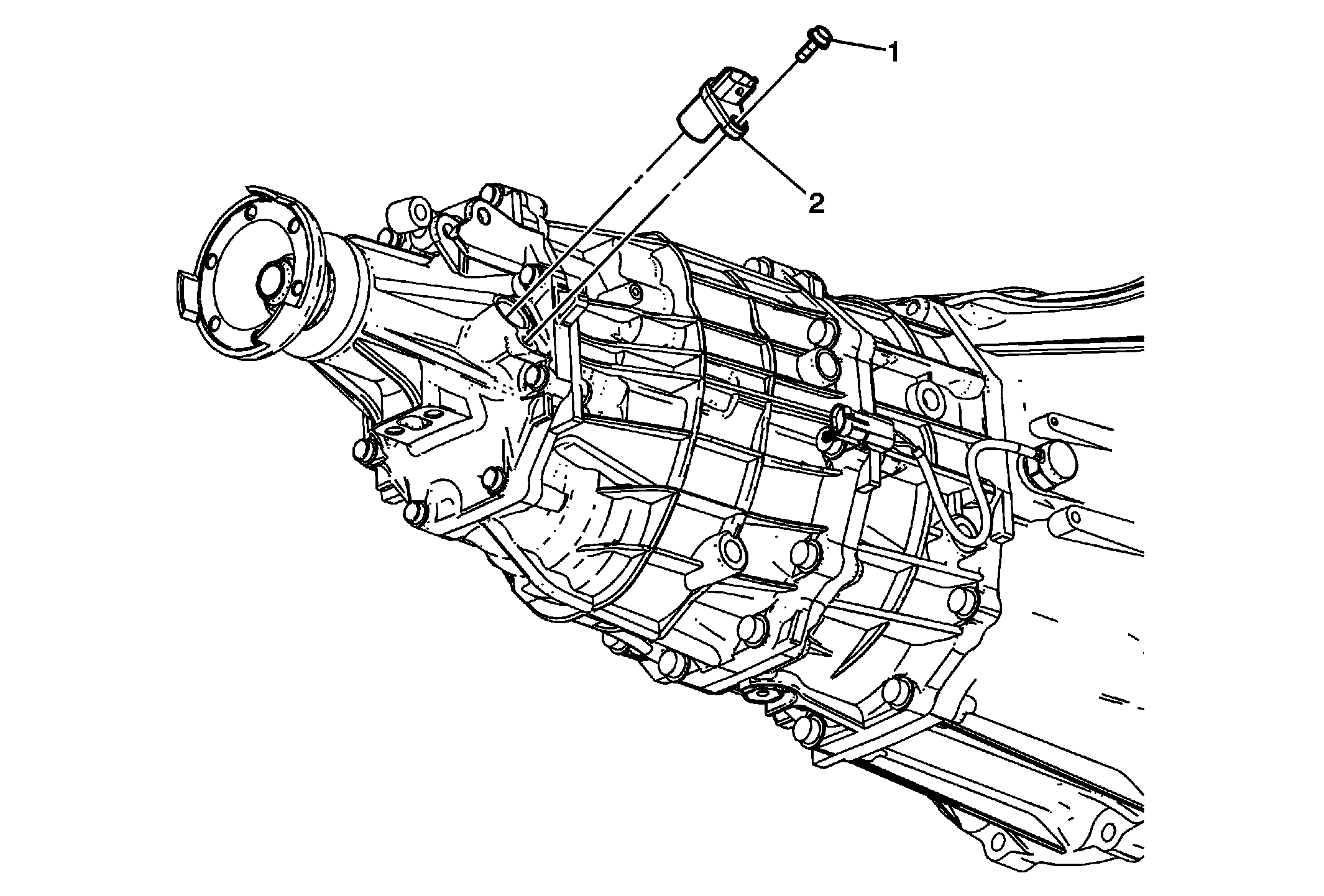

Fig 1: Vehicle Speed Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission support. Refer to Transmission Support Replacement (Manual Transmission) or Transmission Support Replacement (Automatic Transmission) . Lower the rear of the transmission.
1	Vehicle Speed Sensor Bolt NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Vehicle Speed Sensor Procedure: Disconnect the electrical wire harness from the vehicle speed sensor.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transmission support. Refer to Transmission Support Replacement (Manual Transmission) or Transmission Support Replacement (Automatic Transmission) .
Lower the rear of the transmission.

Vehicle Speed Sensor Bolt

NOTE: Refer to Fastener Notice .

Tighten: 8 N.m (71 lb in)

Vehicle Speed Sensor
Procedure:
Disconnect the electrical wire harness from the vehicle speed sensor.
