Transmission Support Replacement (Automatic Transmission)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

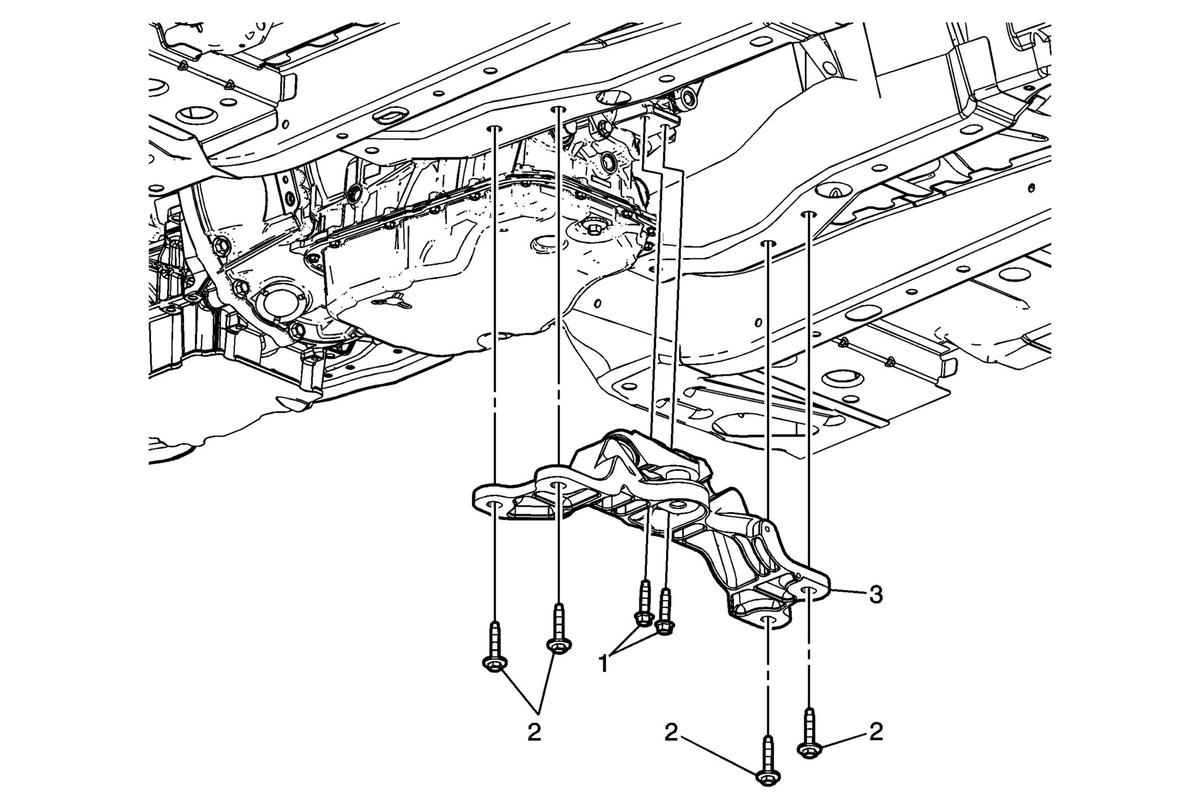

Fig 1: Transmission Support Replacement (Automatic Transmission)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Support the transmission.
1	Transmission Mount Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 60 N.m (44 lb ft)
2	Transmission Support Bolt (Qty: 4) Tighten: 60 N.m (44 lb ft)
3	Transmission Support
