Case Half and Front Output Shaft Hole Plug Installation

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

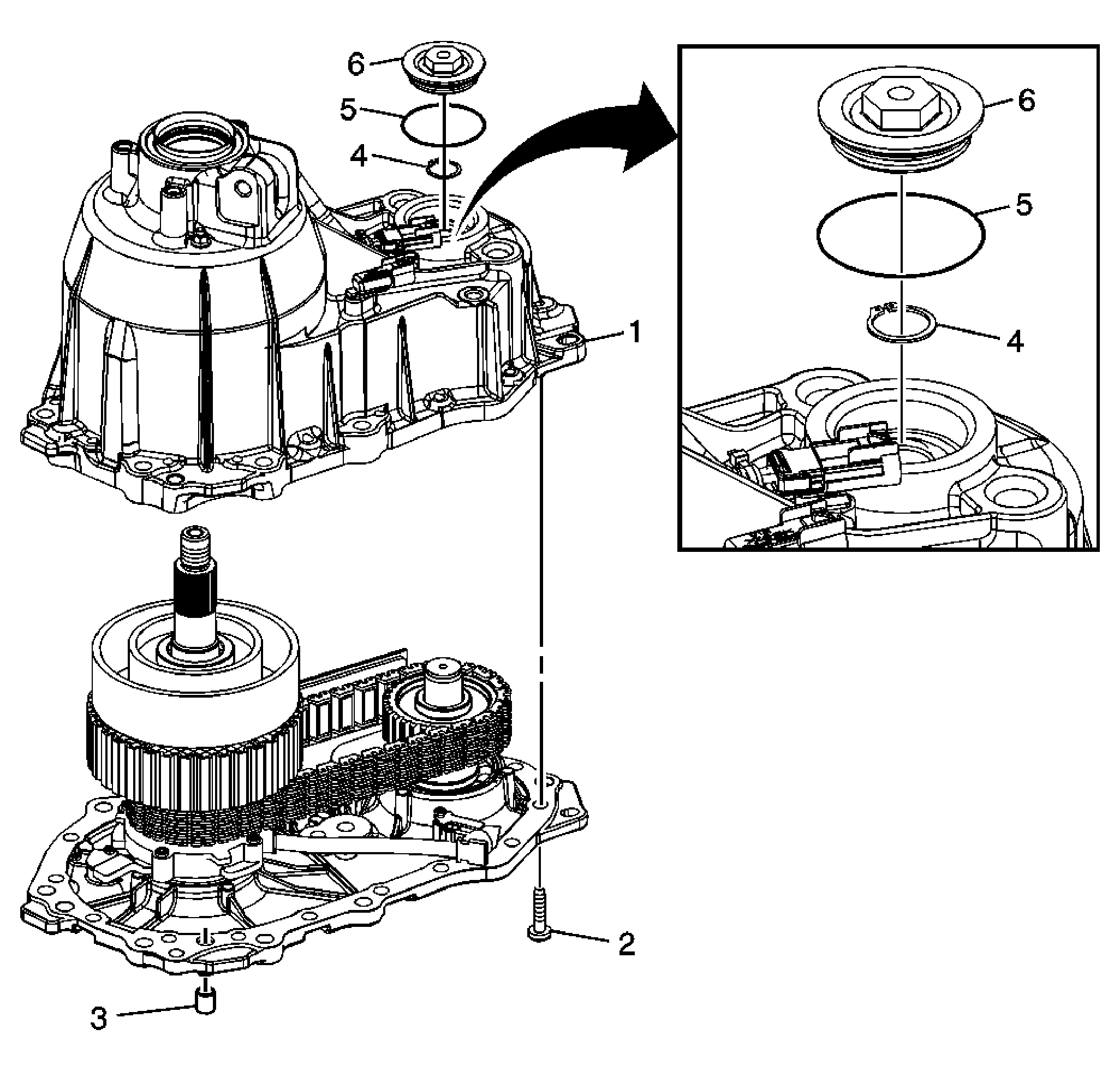

Fig 1: View Of Case Half and Front Output Shaft Hole Plug

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case - Rear Half Tip: Apply a 3.175 mm (1/8 in) bead of room temperature vulcanizing (RTV) sealant, or equivalent, to the mating surface of the cover.
2	Transfer Case Half Bolt NOTE: Refer to Fastener Notice . Tip: The bolts are self-tapping and must be hand started. Do not use power-assisted tools to install the bolts. Tighten: 27-35 N.m (20-26 lb in)
3	Transfer Case Location Pin - If Removed
4	Transfer Case Front Output Shaft Bearing Retaining Ring
5	Transfer Case O-Ring Seal Tip: If the seal is removed, replace with a NEW seal.
6	Transfer Case Front Output Shaft Hole Plug Tighten: 15-20 N.m (11-14 lb ft)
