Input Shaft Bearing Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

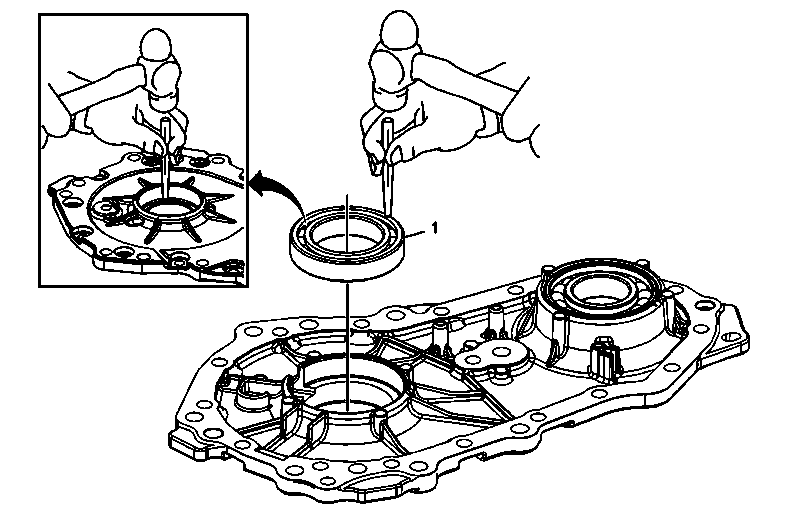

| Callout |
Component Name |
| 1 |
Transfer Case Input Shaft Bearing
Tip:
- Remove the bearing only if it is to be replaced.
- Use a hammer and a suitable punch to remove the bearing.
|
