Transfer Case Disassembled View

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

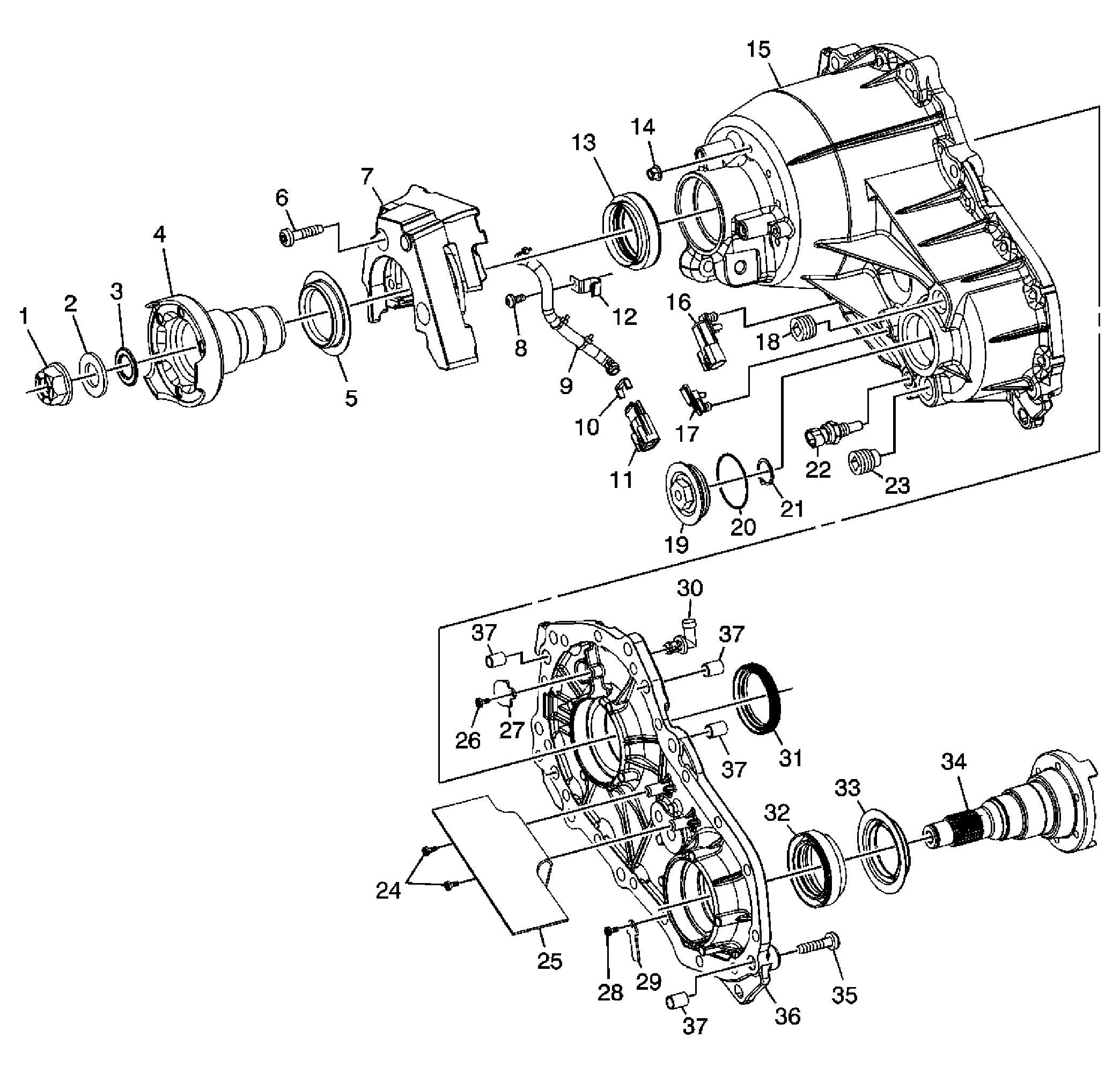

Fig 1: Transfer Case Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Rear Output Shaft Flange Nut
2	Transfer Case Rear Output Shaft Thrust Washer
3	Transfer Case Rear Output Shaft Flange O-Ring Seal
4	Transfer Case Rear Output Shaft Flange Assembly
5	Transfer Case Rear Output Shaft Seal Dirt Deflector
6	Transfer Case Vibration Dampener Bolt
7	Transfer Case Vibration Dampener
8	Transfer Case J-Clip Bolt
9	Transfer Case Clutch Coil Harness Protector
10	Transfer Case Clip
11	Transfer Case Coil Connector Assembly
12	Transfer Case J-Clip
13	Transfer Case Rear Output Shaft Seal
14	Transfer Case Coil Nuts (Qty: 3)
15	Transfer Case - Rear Half
16	Transfer Case Clutch Resistor
17	Transfer Case Clip
18	Transfer Case Oil Fill Plug
19	Transfer Case Front Output Shaft Hole Plug
20	Transfer Case O-Ring Seal
21	Transfer Case Front Output Shaft Bearing Retaining Ring
22	Transfer Case Temperature Switch Assembly
23	Transfer Case Oil Drain Plug - Magnetic
24	Transfer Case Front Output Shaft Drive Chain Snubber Bolts (Qty: 2)
25	Transfer Case Front Output Shaft Drive Chain Snubber
26	Transfer Case Vent Baffle Bolt
27	Transfer Case Vent Baffle
28	Transfer Case Oil Pump Suction Hose Bolt
29	Transfer Case Oil Pump Suction Hose Clamp
30	Transfer Case Vent Assembly
31	Transfer Case Front Output Shaft Seal
32	Transfer Case Input Shaft Seal
33	Transfer Case Front Output Shaft Seal Dirt Deflector
34	Transfer Case Front Output Shaft
35	Transfer Case Half Bolt
36	Transfer Case - Front Half
37	Transfer Case Half Location Pin
37	Transfer Case Location Pin
37	Transfer Case Location Pin
37	Transfer Case Location Pin

Fig 2: View of Transfer Case Internal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Rear Output Shaft Rear Bearing Assembly
2	Transfer Case Coil Assembly
3	Transfer Case Thrust Washer
4	Transfer Case Thrust Bearing
5	Transfer Case Rotor Assembly
6	Transfer Case Balls
7	Transfer Case Apply Cam
8	Transfer Case Wave Spring
9	Transfer Case Snap Ring
10	Transfer Case Clutch Pack Assembly
11	Transfer Case Armature
12	Transfer Case Pressure Plate
13	Transfer Case Friction Plate
13	Transfer Case Friction Plate
14	Transfer Case Separator Plate
14	Transfer Case Separator Plate
15	Transfer Case Clutch Hub
16	Transfer Case Thrust Plate
17	Transfer Case Clutch Pack Housing
18	Transfer Case Front Output Shaft Drive Sprocket Spacer
19	Transfer Case Front Output Shaft Drive Chain Assembly
20	Transfer Case Front Output Shaft Drive Sprocket
21	Transfer Case Front Output Shaft Drive Sprocket Thrust Washer
22	Transfer Case Front Output Shaft Drive Sprocket Bearing Assembly
23	Transfer Case Front Output Shaft Drive Sprocket Thrust Washer
24	Transfer Case Oil Pump Assembly
25	Transfer Case Input Shaft Assembly
26	Transfer Case Input Shaft Bearing Assembly
27	Transfer Case Front Output Shaft Rear Bearing Assembly
28	Transfer Case Front Output Shaft Driven Sprocket
29	Transfer Case Front Output Shaft Driven Sprocket Spacer
30	Transfer Case Front Output Shaft Front Bearing Assembly
