Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

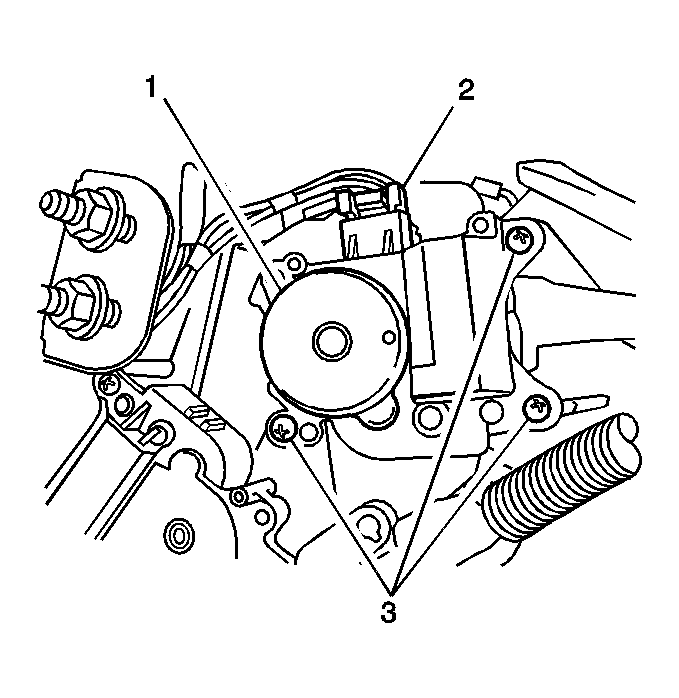

Fig 1: Identifying Mode Actuator

Courtesy of GENERAL MOTORS CORP.

Install the mode actuator.

Fig 2: Identifying Mode Actuator Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the mode actuator screws (2).
Tighten: Tighten the screws to 1 N.m (9 lb in).

Fig 3: View of Mode Actuator Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the actuator.
Install the I/P Carrier. Refer to Instrument Panel Carrier Replacement .
