Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

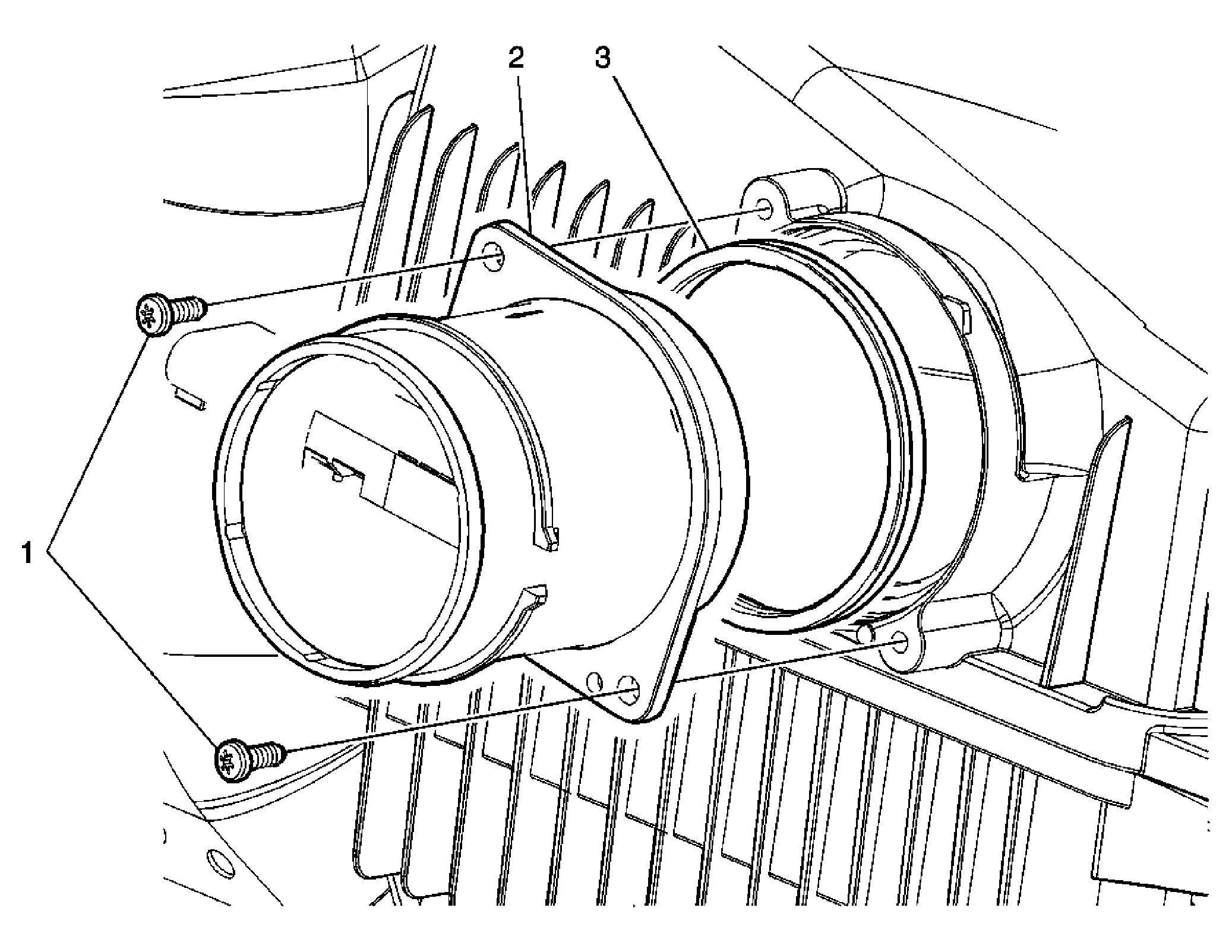

Fig 1: Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn OFF the ignition. Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) .
1	Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3.25 N.m (29 lb in)
2	Mass Airflow Sensor/Intake Temperature Sensor Procedure: Disconnect the sensor wiring harness.
3	Seal
