Air Cleaner Outlet Duct Replacement (LLT)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

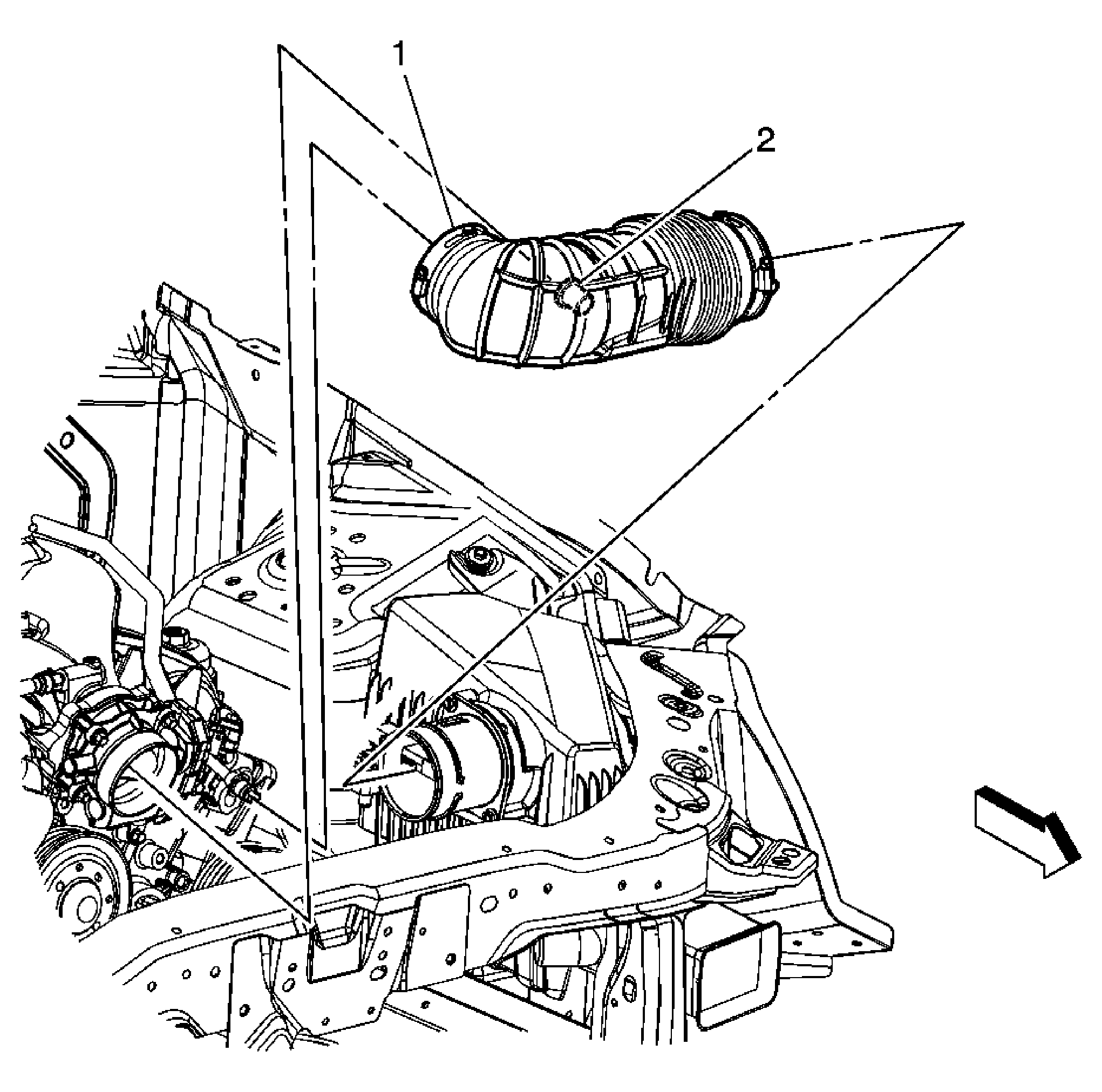

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LP1, LY7) or Fuel Injector Sight Shield Replacement (LLT) . |
|
| 1 | Clamp (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 4 N.m (35 lb in) |
| 2 | Air Cleaner Duct Procedure: Align the air cleaner duct with the PCV vent tube during installation. |
