Air Cleaner Element Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

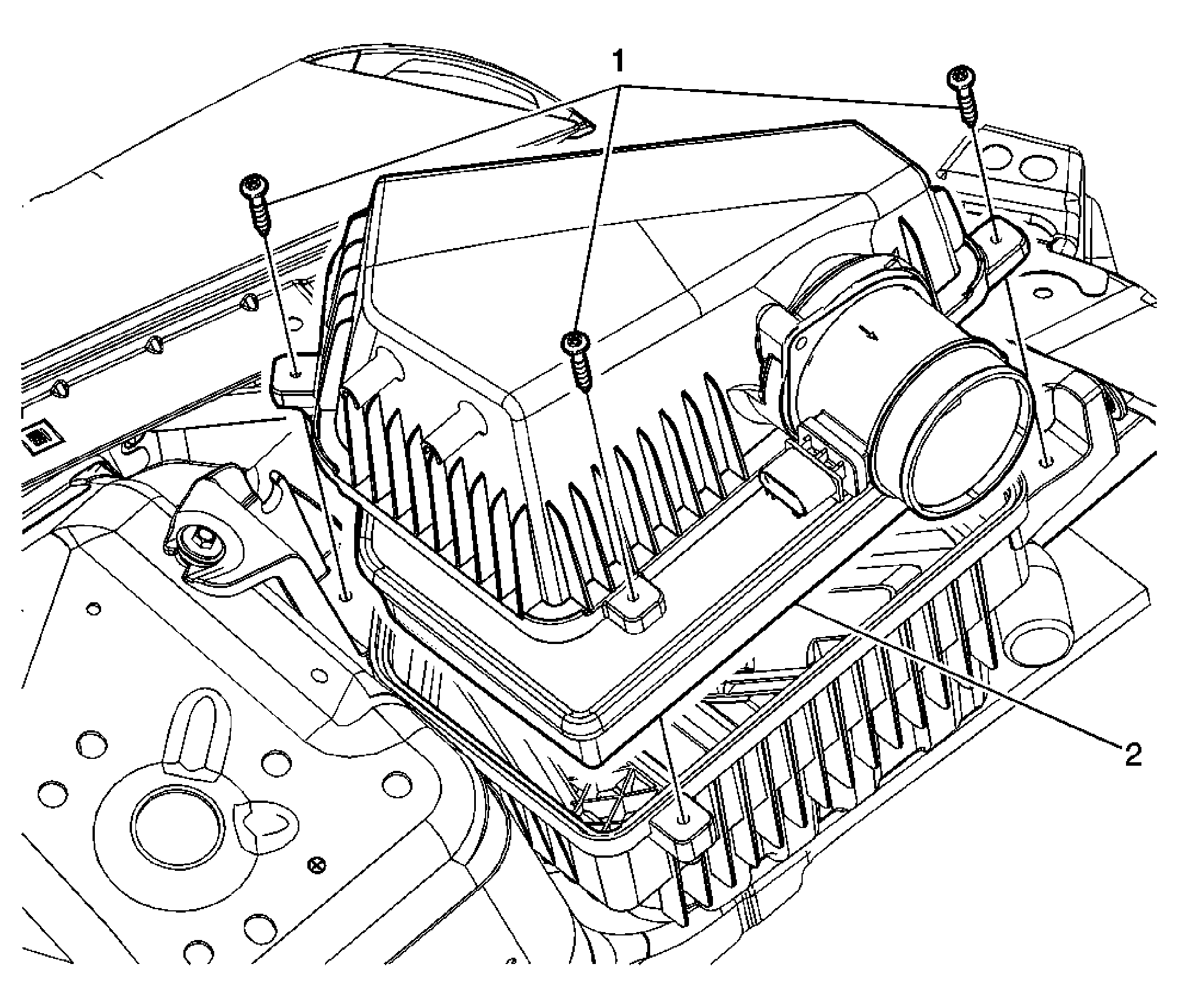

Fig 1: Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn OFF the ignition. Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) . Disconnect the MAF/IAT sensor harness connector.
1	Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Air Cleaner Element Procedure Disconnect the sensor wiring harness. Lift the air cleaner cover in order to remove the air cleaner element.

Callout

Component Name

Preliminary Procedures

Turn OFF the ignition.
Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) .
Disconnect the MAF/IAT sensor harness connector.

Screws (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 4 N.m (35 lb in)

Air Cleaner Element

Procedure

Disconnect the sensor wiring harness.
Lift the air cleaner cover in order to remove the air cleaner element.
