Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

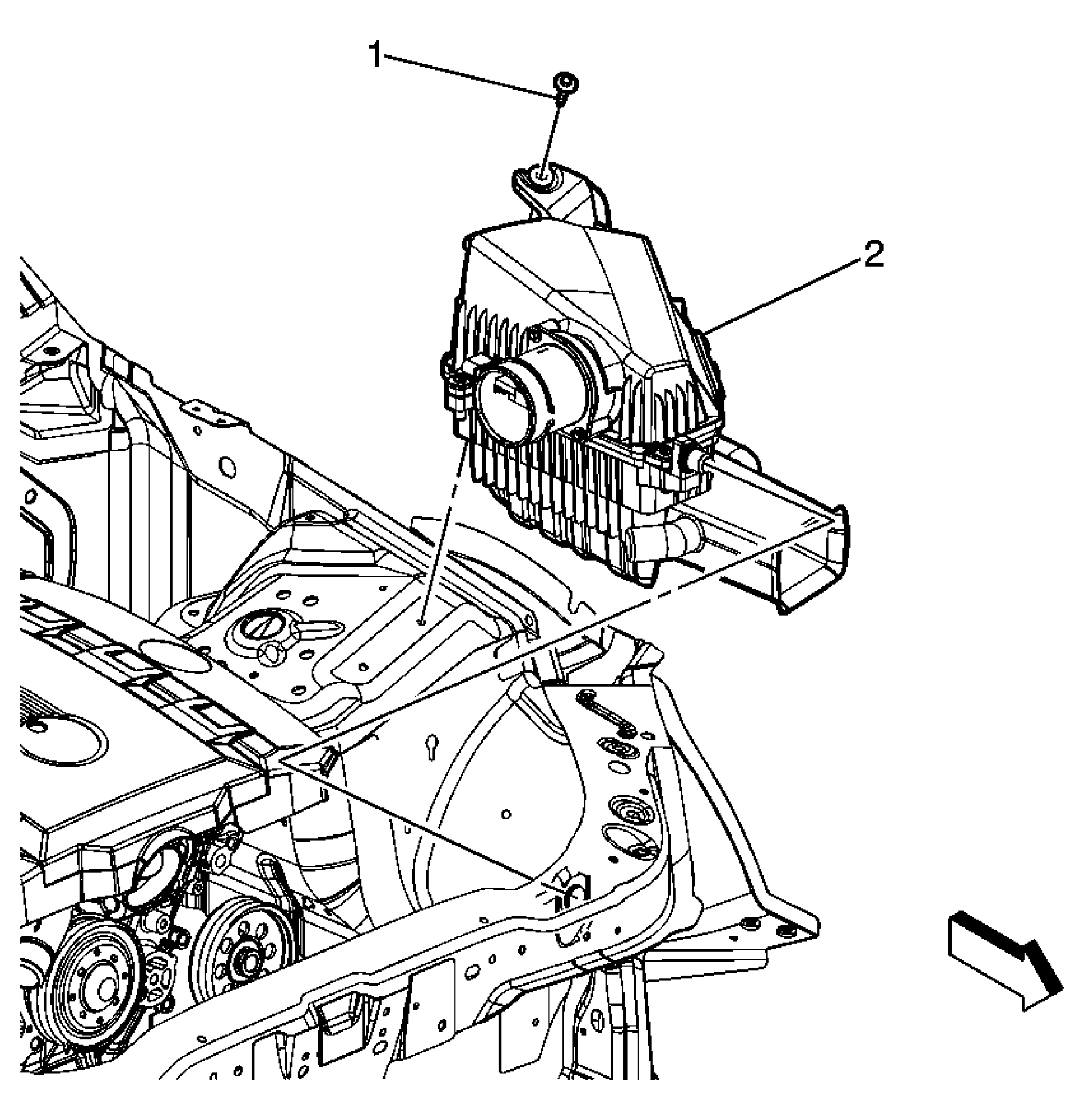

Fig 1: Air Cleaner Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn OFF the ignition. Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) . Disconnect the MAF/IAT sensor harness connector.
1	Bolt NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Air Cleaner Assembly Procedure Disconnect the sensor harness connector. Tilt the assembly rear upward while disengaging the air cleaner isolator.

Callout

Component Name

Preliminary Procedures

Turn OFF the ignition.
Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) .
Disconnect the MAF/IAT sensor harness connector.

Bolt

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Air Cleaner Assembly

Procedure

Disconnect the sensor harness connector.
Tilt the assembly rear upward while disengaging the air cleaner isolator.
