Removal Procedure
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
- Disconnect the cooling fan electrical connectors.
- Remove the auxiliary water pump and any hoses.
- Remove any hoses or pipes.
- Disconnect the condenser tube from the cooling fan shroud retainer clip.
- Disengage the surge tank inlet hose from the retaining features on the cooling fan shroud and reposition aside.

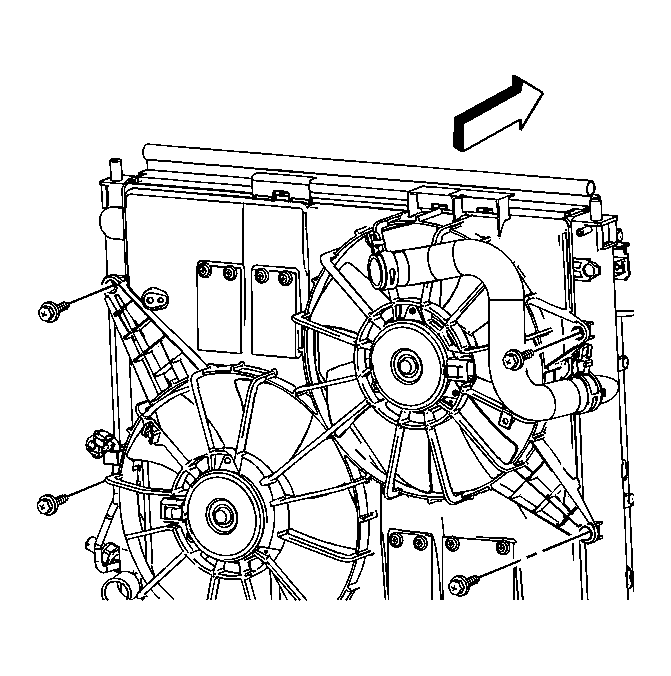

- Remove the retaining bolts that secure the cooling fan shroud to the radiator.
- Remove the cooling fan assembly.
CAUTION:
An electric fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.
CAUTION:
To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.
