Driver Seat Adjuster and Recliner Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

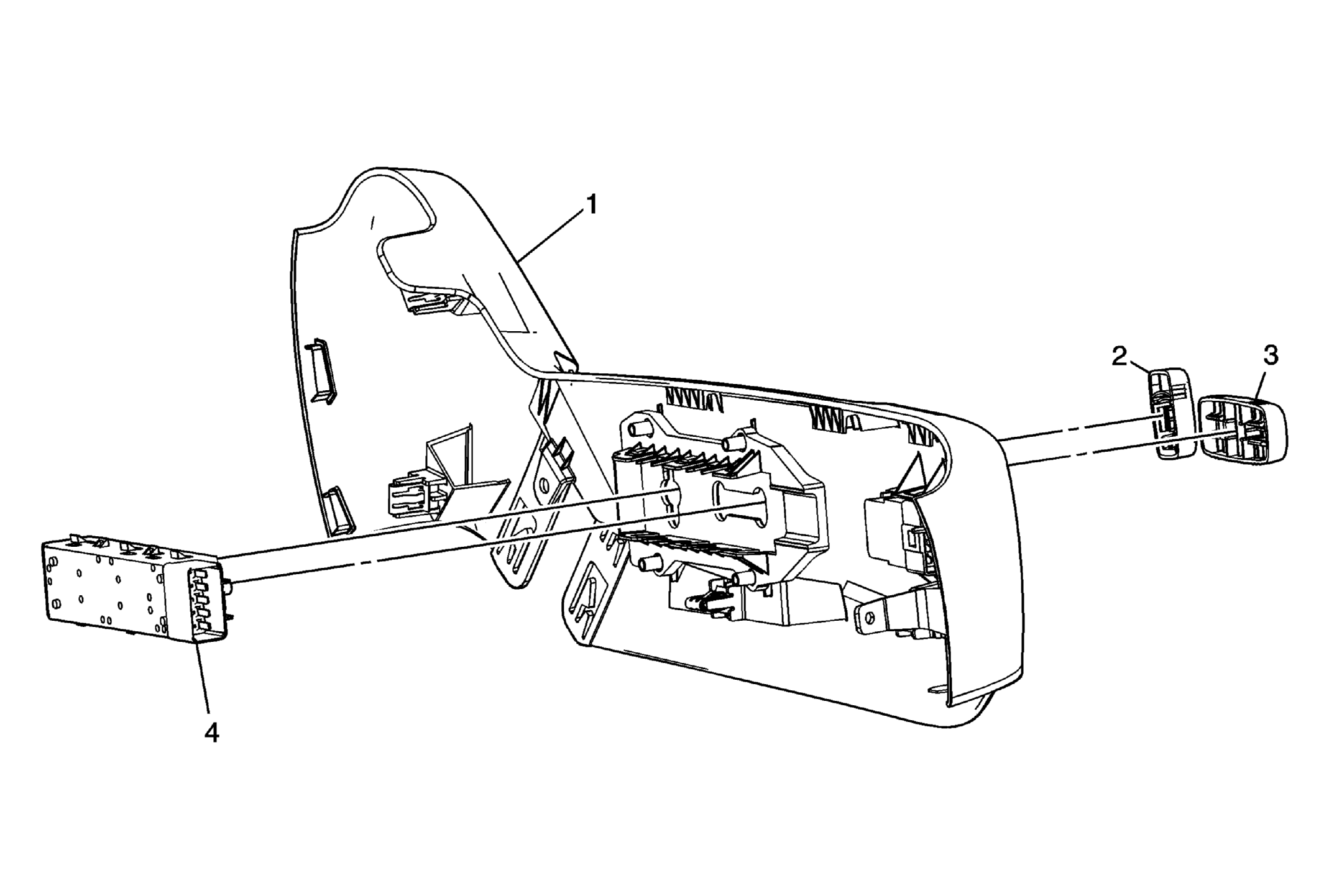

| Callout | Component Name |
|---|---|
| 1 | Front Seat Adjuster Switch Bezel Refer to Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement . |
| 2 | Front Seat Adjuster Switch Knob |
| 3 | Front Seat Recliner Switch Knob |
| 4 | Front Seat Adjuster Switch Tip: Use a flat-bladed tool to release the switch from the switch bezel. |
