Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

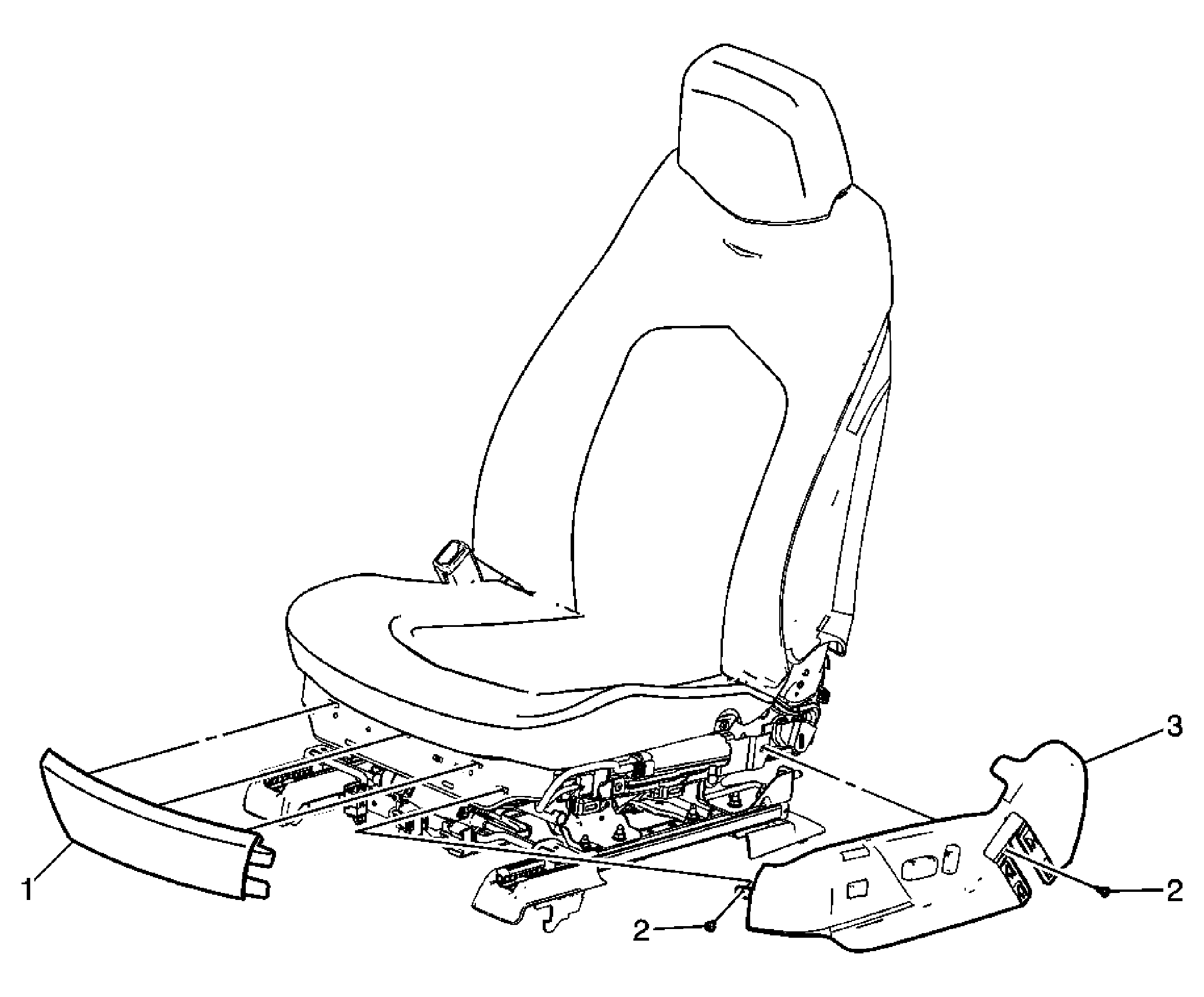

Fig 1: Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Outer Adjuster Front Finish Cover Refer to Driver Seat and Passenger Seat Outer Adjuster Front Finish Cover Replacement .
2	Front Seat Adjuster Switch Bezel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Front Seat Adjuster Switch Bezel Procedure Disconnect the electrical connectors. If replacing the bezel, transfer components as necessary.
