Theft Deterrent Vehicle Inclination Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

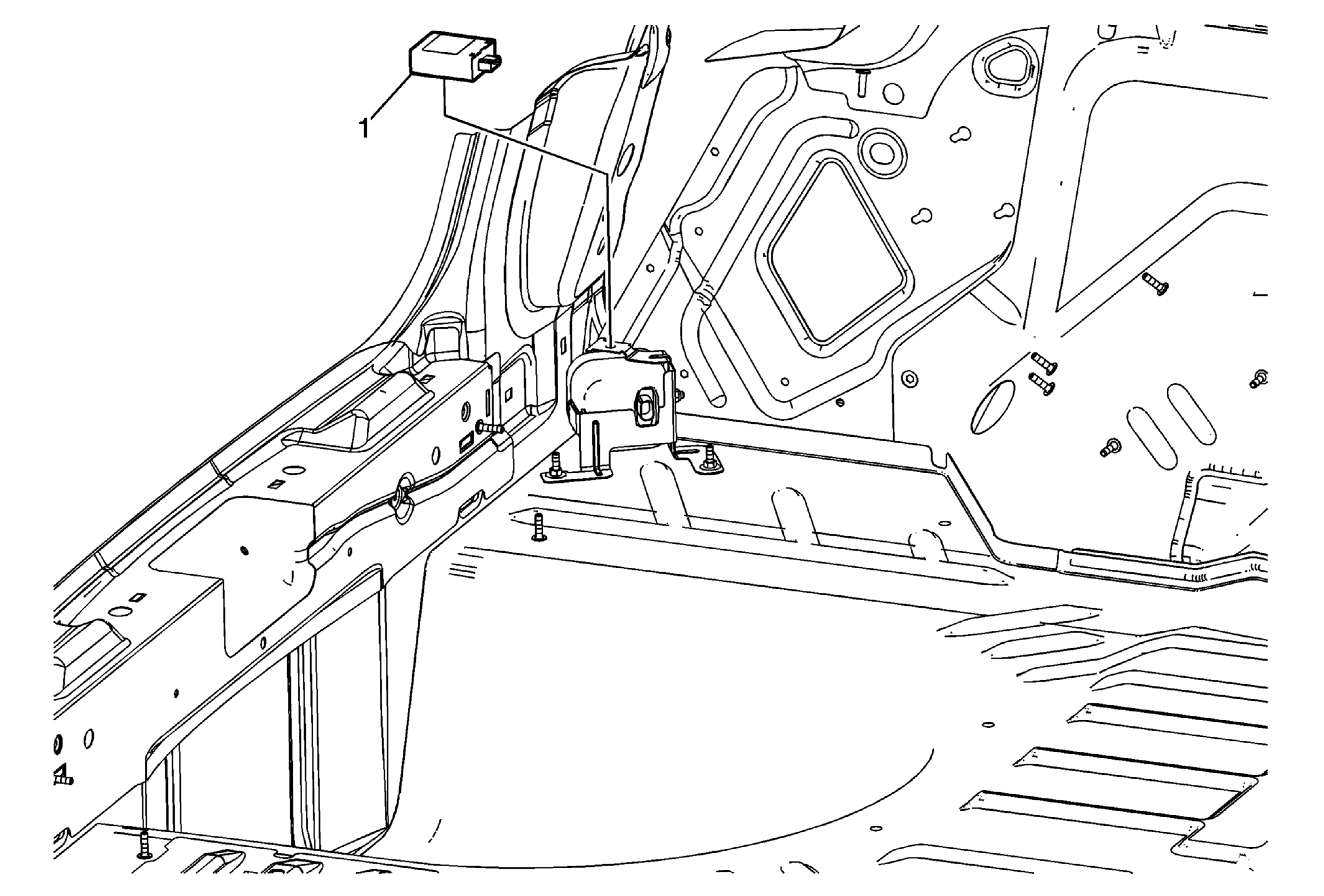

Fig 1: Identify Theft Deterrent Vehicle Inclination Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .
1	Theft Deterrent Vehicle Inclination Sensor Procedure Disconnect the electrical connector. For programming and set up procedures, refer to Control Module References . Unsnap the theft deterrent vehicle inclination sensor from the theft deterrent alarm.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .

Theft Deterrent Vehicle Inclination Sensor

Procedure

Disconnect the electrical connector.
For programming and set up procedures, refer to Control Module References .
Unsnap the theft deterrent vehicle inclination sensor from the theft deterrent alarm.
