Rear Compartment Floor Panel Trim Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

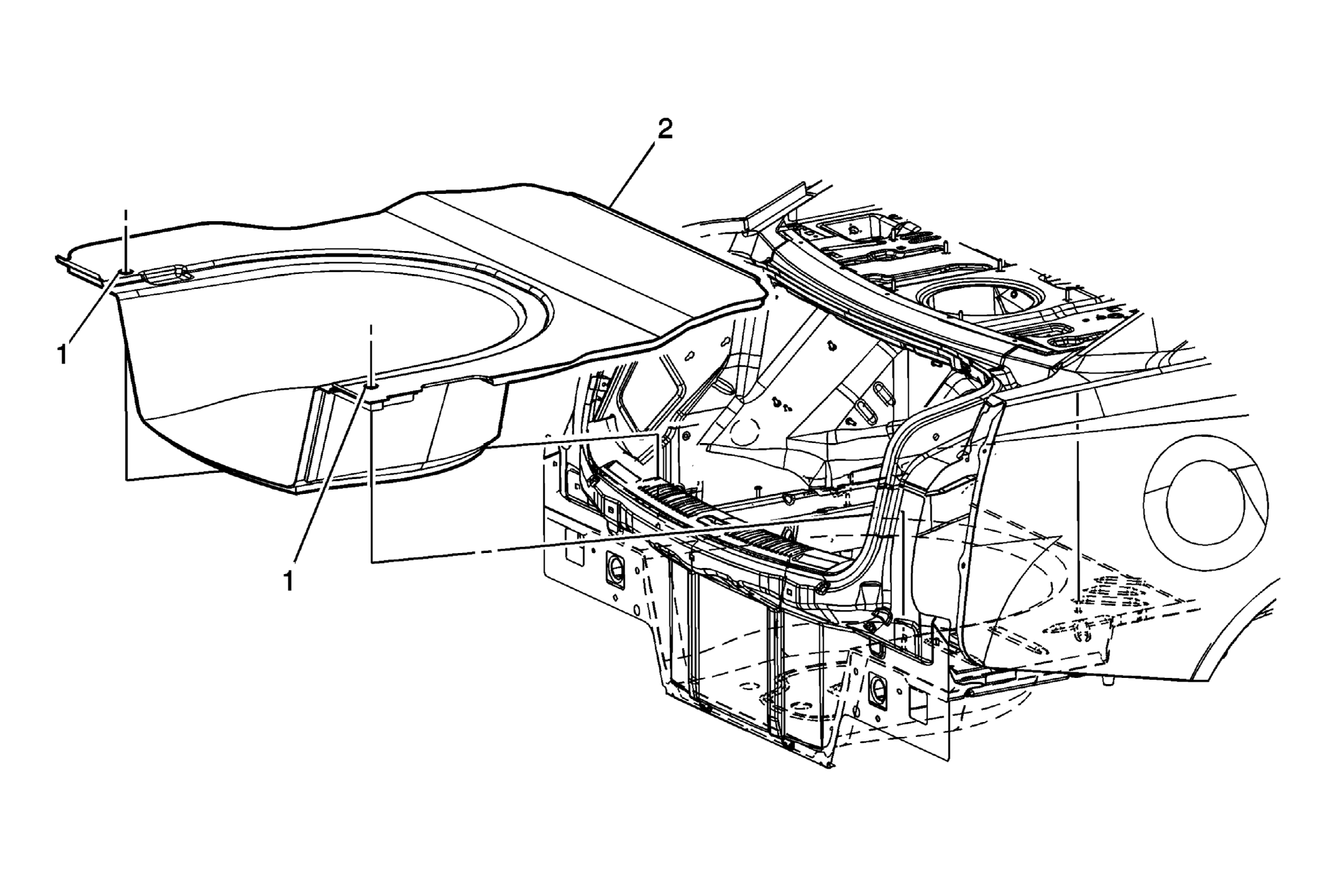

Fig 1: Identifying Rear Compartment Floor Panel Trim Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panels. Refer to Rear Compartment Side Trim Panel Replacement . Remove the spare tire and accessories.
1	Rear Compartment Convenience Net Retainer (Qty: 4)
2	Rear Compartment Floor Panel Trim

Callout

Component Name

Preliminary Procedure

Remove the rear compartment side trim panels. Refer to Rear Compartment Side Trim Panel Replacement .
Remove the spare tire and accessories.

Rear Compartment Convenience Net Retainer (Qty: 4)

Rear Compartment Floor Panel Trim
