Theft Deterrent Alarm Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

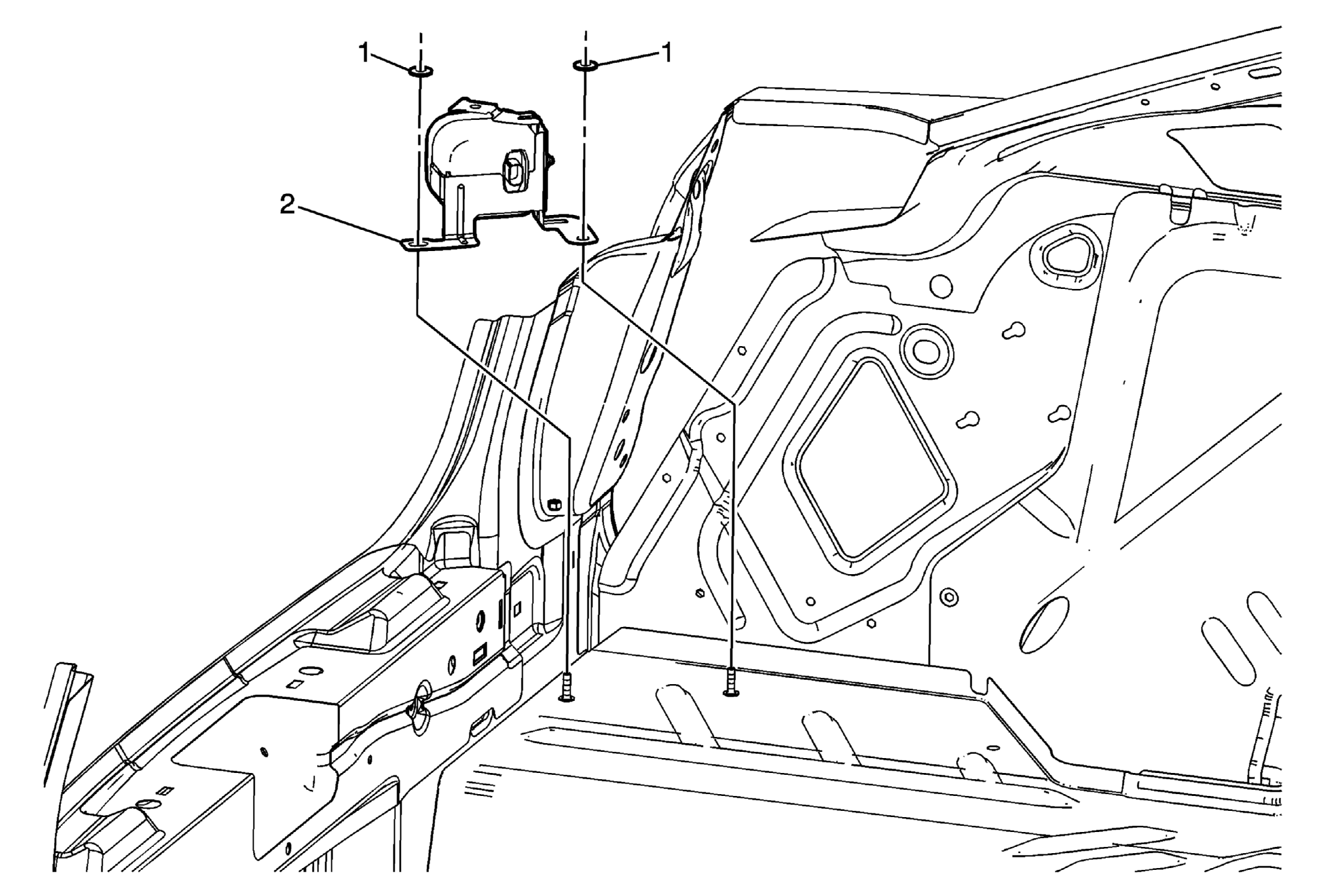

Fig 1: Theft Deterrent Alarm Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .
1	Theft Deterrent Alarm Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Theft Deterrent Alarm Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .

Theft Deterrent Alarm Nut (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Theft Deterrent Alarm

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures.
