Ignition and Start Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

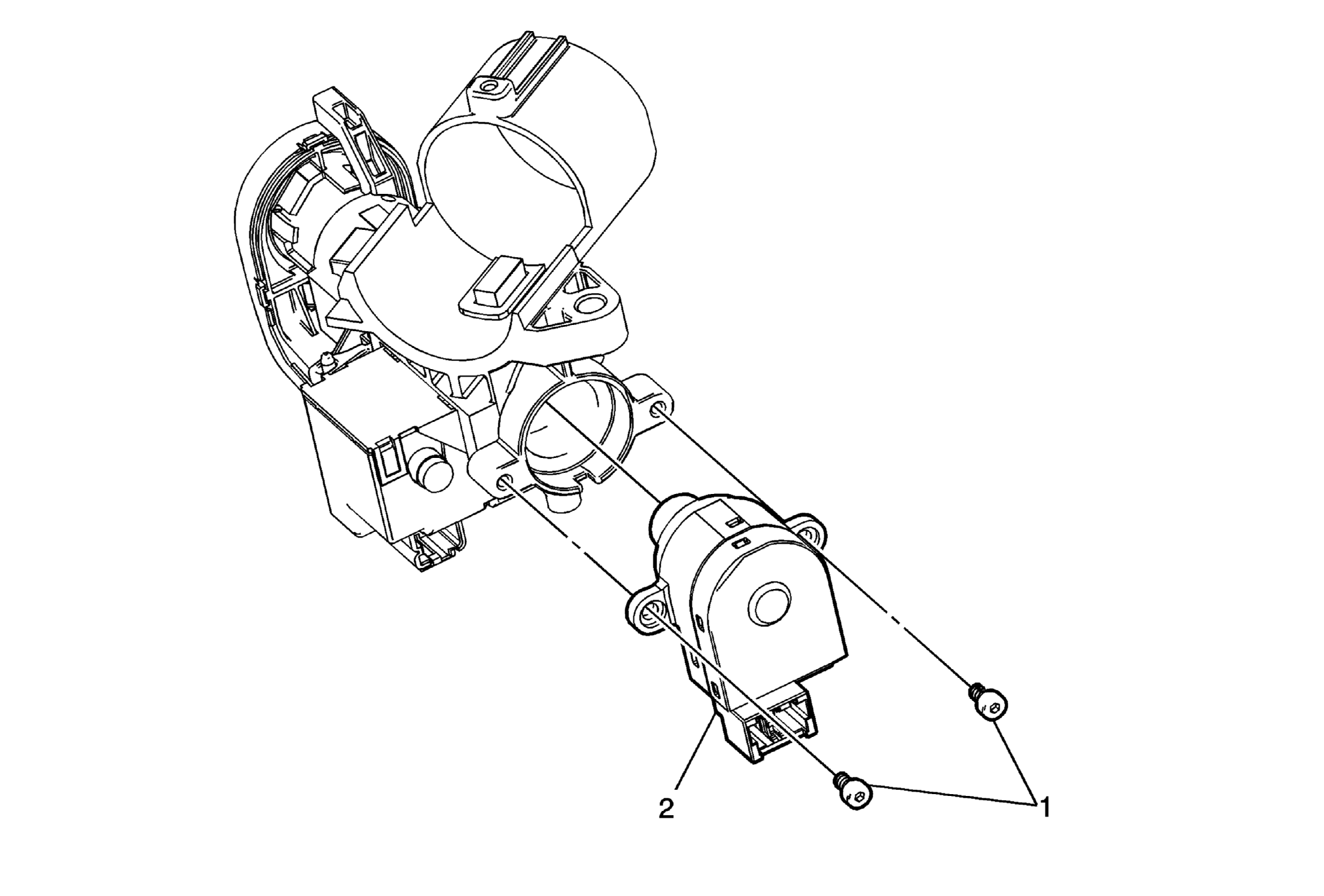

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement . |
|
| 1 | Ignition and Start Switch Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Ignition and Start Switch |
