Ignition and Start Switch Housing Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

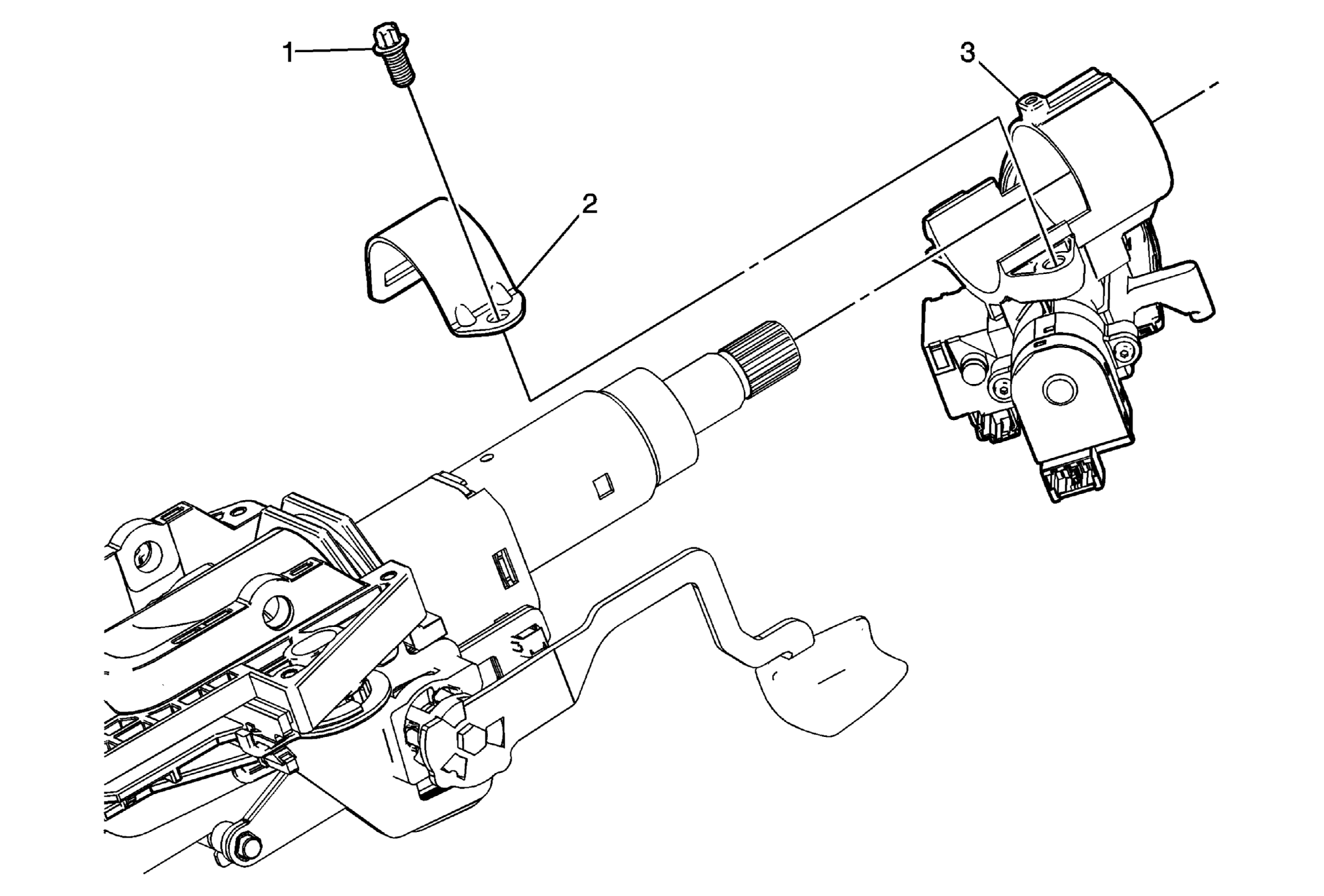

Fig 1: Ignition and Start Switch Housing Replacement
GM1866492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
1 Ignition and Start Switch Housing Bolt
NOTE: Refer to Fastener Notice .

Tighten:  8 N.m (71 lb in)
2 Ignition and Start Switch Housing Strap
3 Ignition and Start Switch Housing

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Transfer any parts as needed.
