Stabilizer Shaft Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

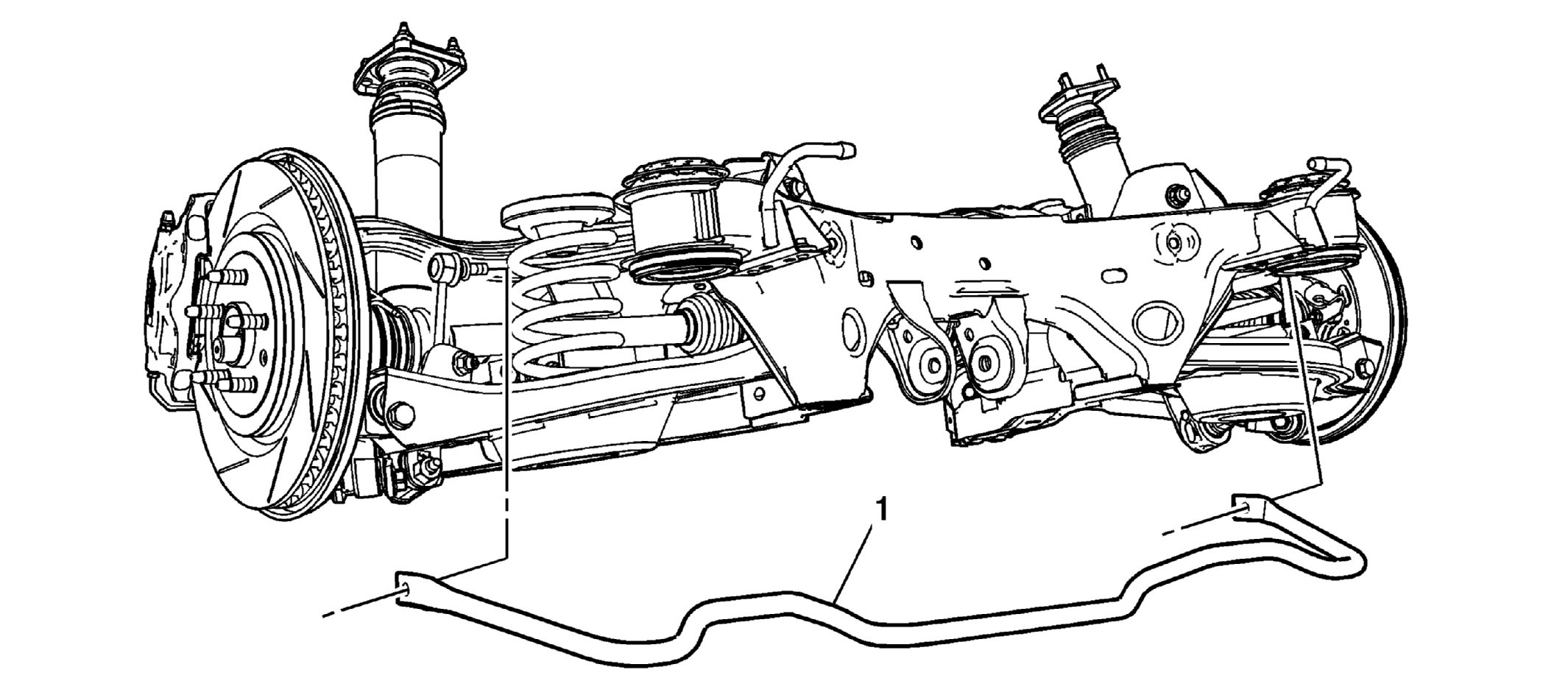

Fig 1: View of Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the stabilizer shaft link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement Remove the stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement .
1	Stabilizer Shaft

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the stabilizer shaft link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement
Remove the stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement .

Stabilizer Shaft
