Stabilizer Shaft Insulator Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

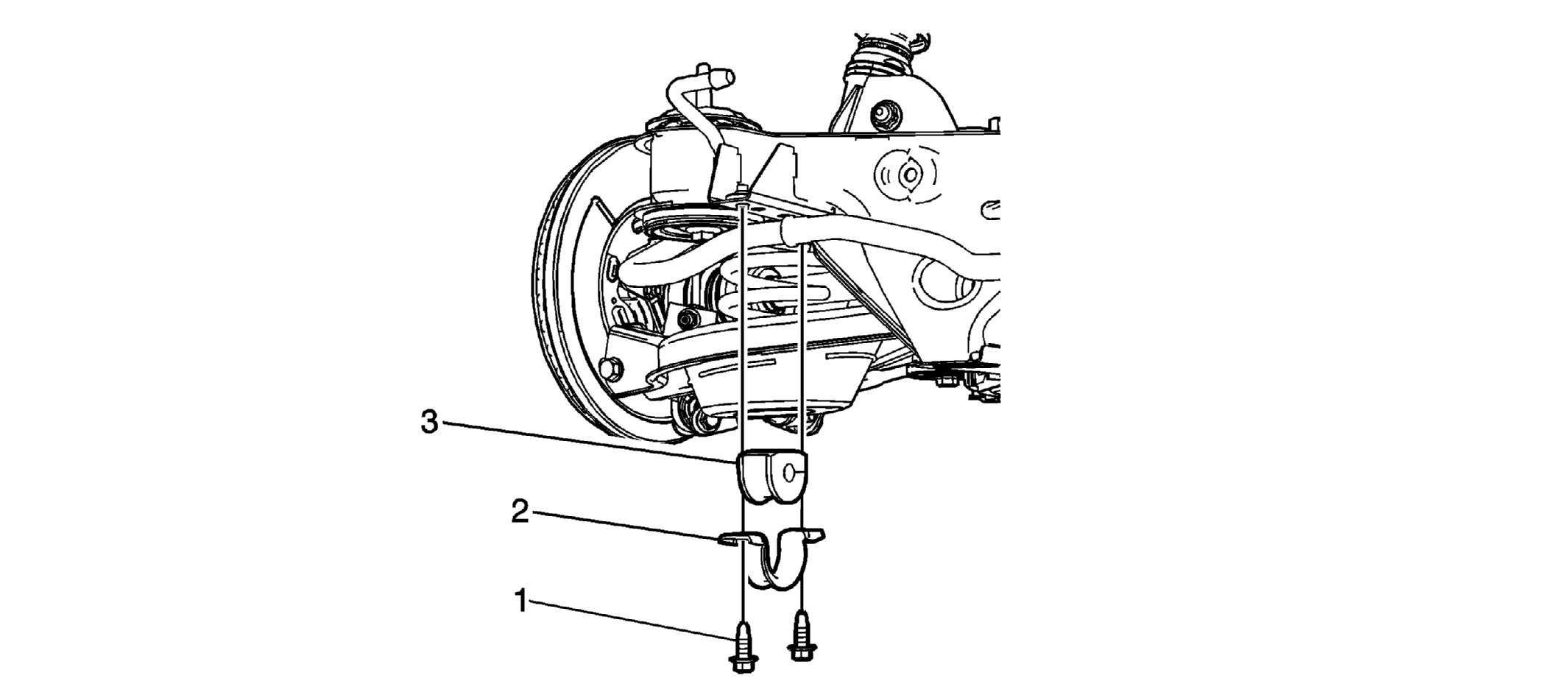

Fig 1: Identifying Shaft Insulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Stabilizer Shaft Insulator Clamp Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 60 N.m (44 lb ft).
2	Stabilizer Shaft Insulator Clamp
3	Stabilizer Shaft Insulator Tip: Install the insulator so the slit is facing the rear of the vehicle.
