Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: View Of Right Engine Mount
GM2009488Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount to the vehicle. Ensure the slotted washer (1) or plastisol insert washer (2) is properly installed and located between the engine mount and the frame.
  2. Lower the engine onto the engine mount.
    NOTE: Refer to Fastener Notice in the Preface section.

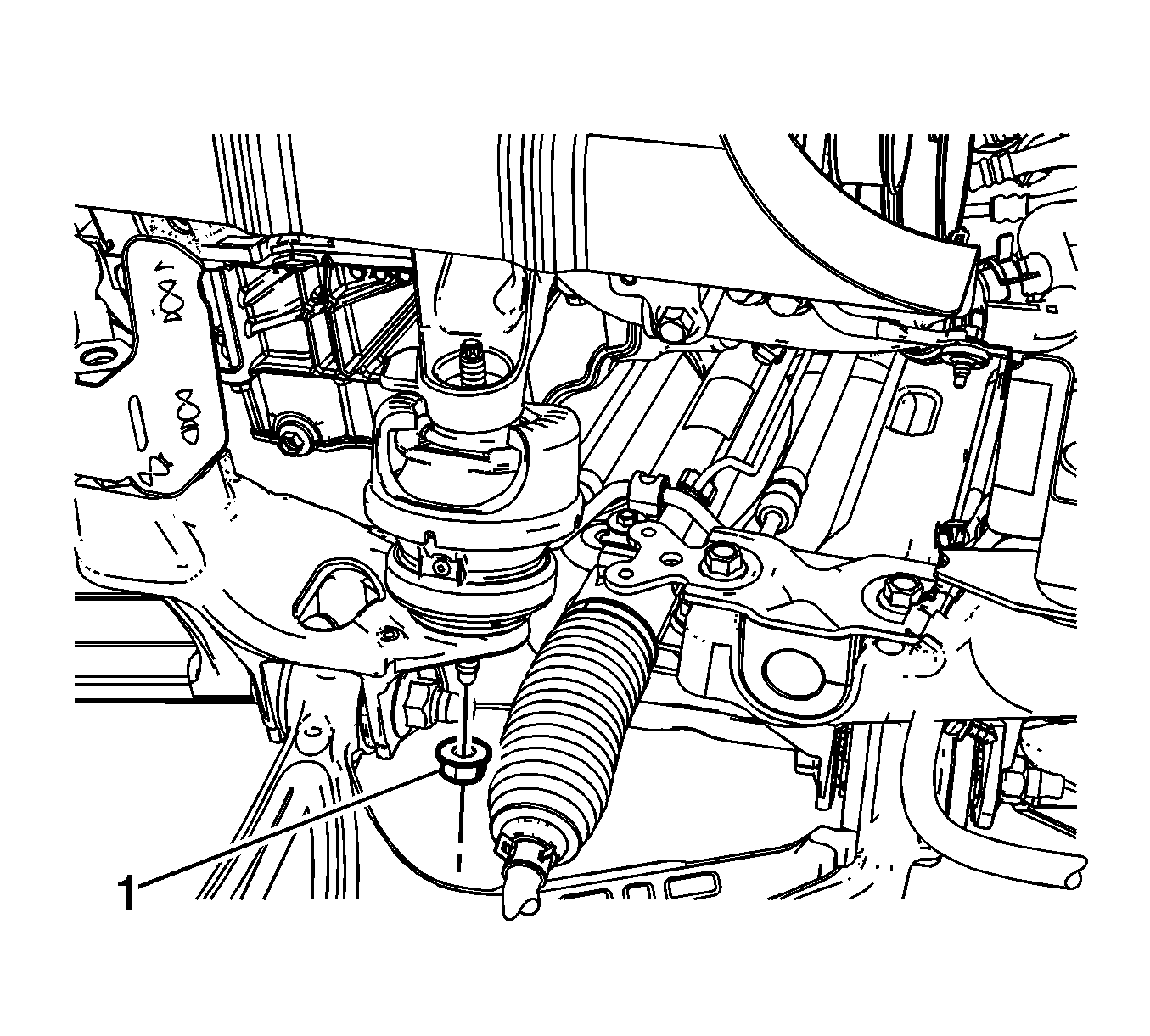

    Fig 2: View Of Right Engine Mount
    GM2040779Courtesy of GENERAL MOTORS CORP.
  3. Install the right and left engine mount lower nut (1).

    Tighten:  Tighten the nut to 80 N.m (59 lb ft).

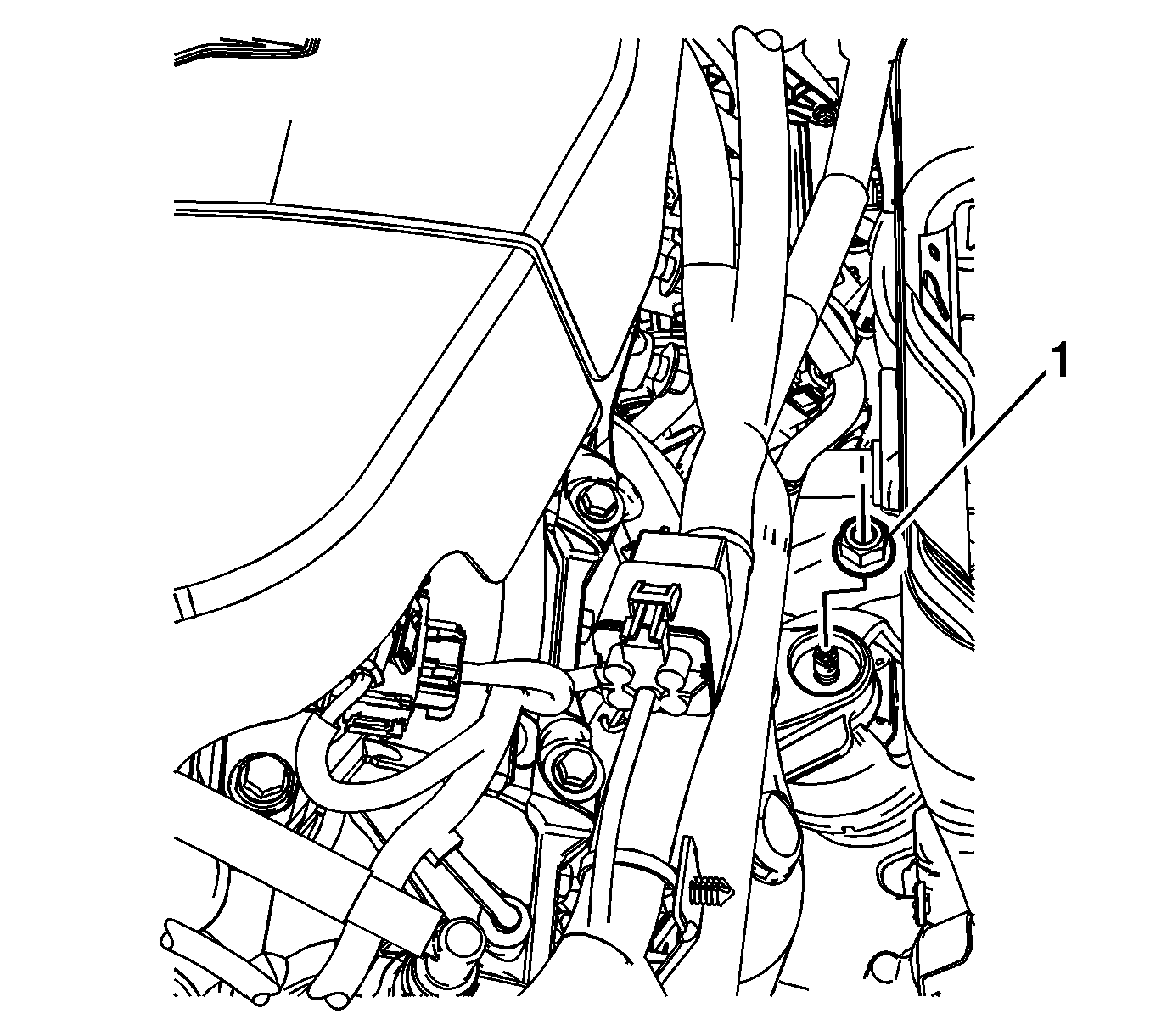

    Fig 3: Identifying Frame Mounting Nuts
    GM2040466Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw jack and a block of wood from under the engine oil pan
  5. Lower the vehicle.
  6. Install the nut (1) to the top of the engine mount.

    Tighten:  Tighten the nut to 80 N.m (59 lb ft).

  7. Install the tower brace. Refer to Cross Vehicle Brace Replacement .
