Cross Vehicle Brace Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

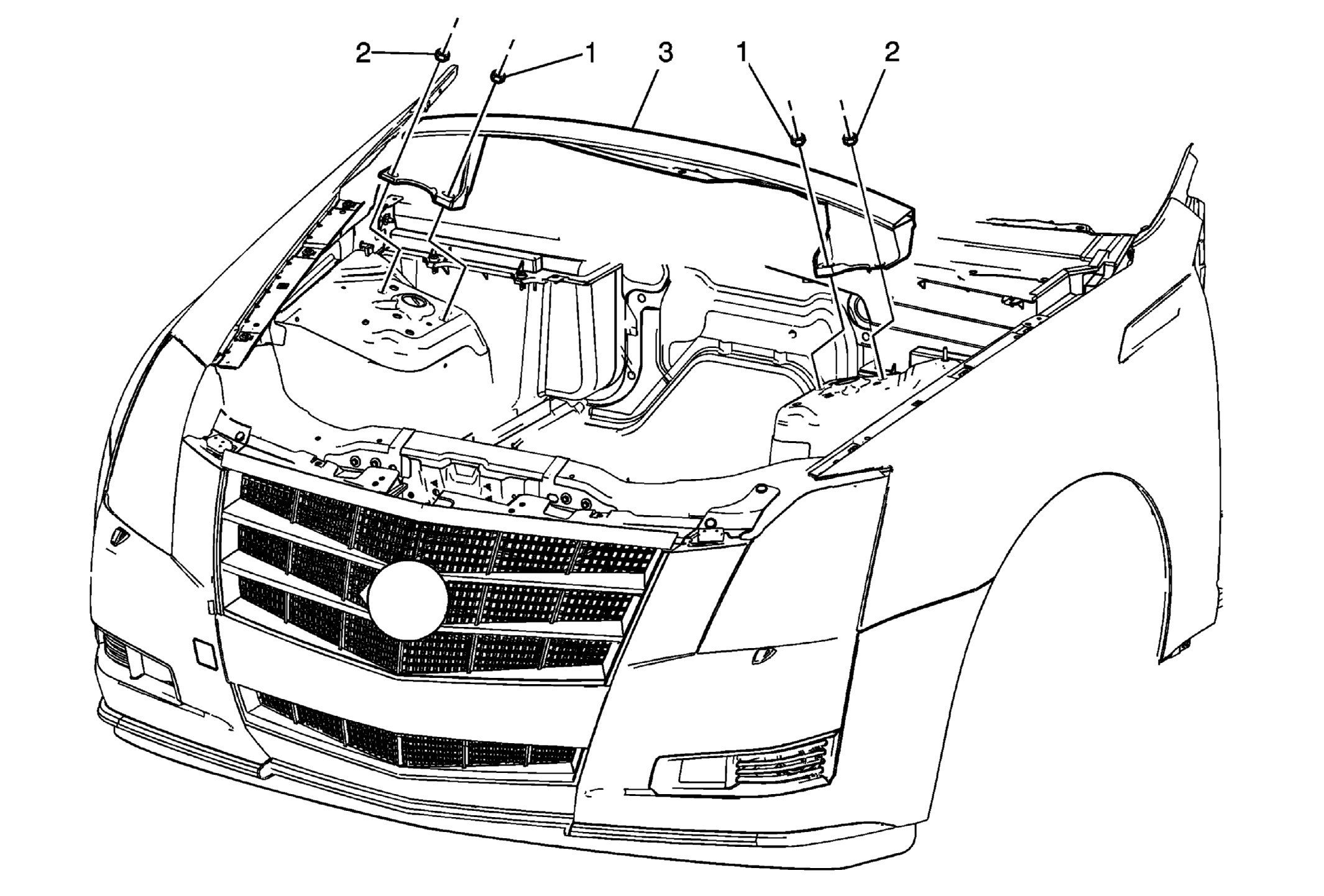

| Callout | Component Name |
|---|---|
|
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedures: Remove the Front Compartment Side Sight Shield. Refer to Front Compartment Side Sight Shield replacementFront Compartment Side Sight Shield Replacement |
|
| 1 | Cross Vehicle Brace Nut (Qty: 2)
NOTE:
Refer to Fastener Notice
. Procedure: Remove the side trim panels in order to access the cross brace. Tighten: 25 N.m (18 lb ft) |
| 2 | Cross Vehicle Brace bolt (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 3 | Cross Vehicle Brace |
