Remote Power Steering Fluid Reservoir Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

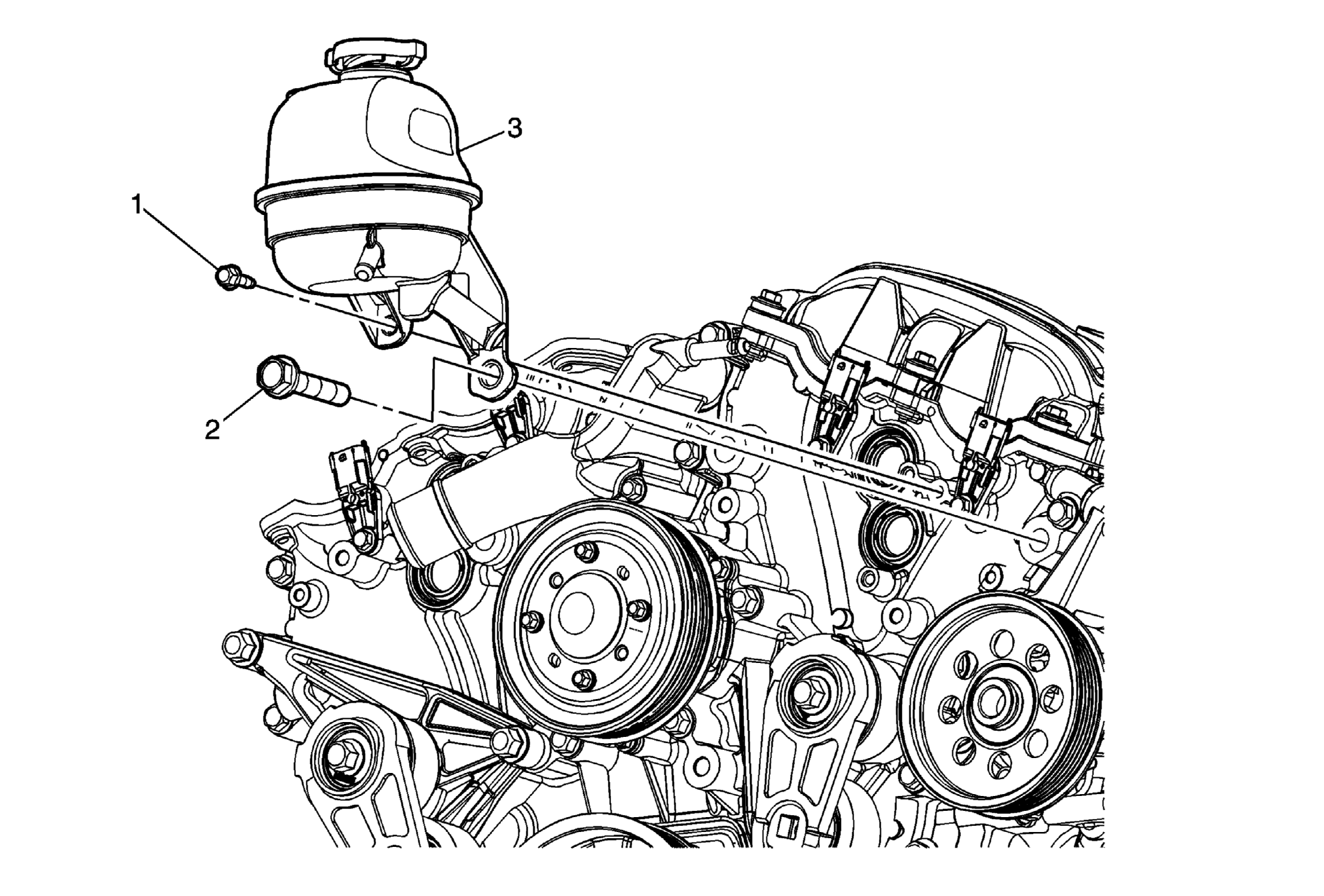

Fig 1: Remote Power Steering Fluid Reservoir Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LY7) or Air Cleaner Outlet Duct Replacement (LLT) .
1	Remote Power Steering Fluid Reservoir Bolt NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Remote Power Steering Fluid Reservoir Bolt Tighten: 40 N.m (30 lb ft)
3	Remote Power Steering Fluid Reservoir Procedure Disconnect the power steering fluid reservoir outlet hose. Disconnect the power steering reservoir inlet hose. After repairs, fill and bleed the power steering system. Refer to Power Steering System Bleeding . Tip: Before repairs, remove as much power steering fluid from the remote power steering fluid reservoir as possible. Before repairs, place drain pans under the vehicle as needed. After repairs, clean any excess fluid from the vehicle and remove the drain pans.
