Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left front engine splash shield. Refer to Engine Splash Shield Replacement .
  2. Remove the front air deflector. Refer to Front Air Deflector Replacement .
  3. Place drain pans under the vehicle as needed.
  4. Separate the lower intermediate steering shaft from the steering gear. Refer to Lower Intermediate Steering Shaft Replacement .
  5. Separate the steering linkage outer tie rods from the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement (with Rear Wheel Drive)  or Steering Linkage Outer Tie Rod Replacement (with All Wheel Drive) .
  6. Separate the lower control arms from the steering knuckles. Refer to Lower Control Arm Replacement (AWD) or Lower Control Arm Replacement (RWD) .
    7. Fig 1: View Of Power Steering Gear Inlet Hose-To-Power Steering Gear Retaining Bolt
    GM1301495Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering gear inlet pipe bracket bolt.

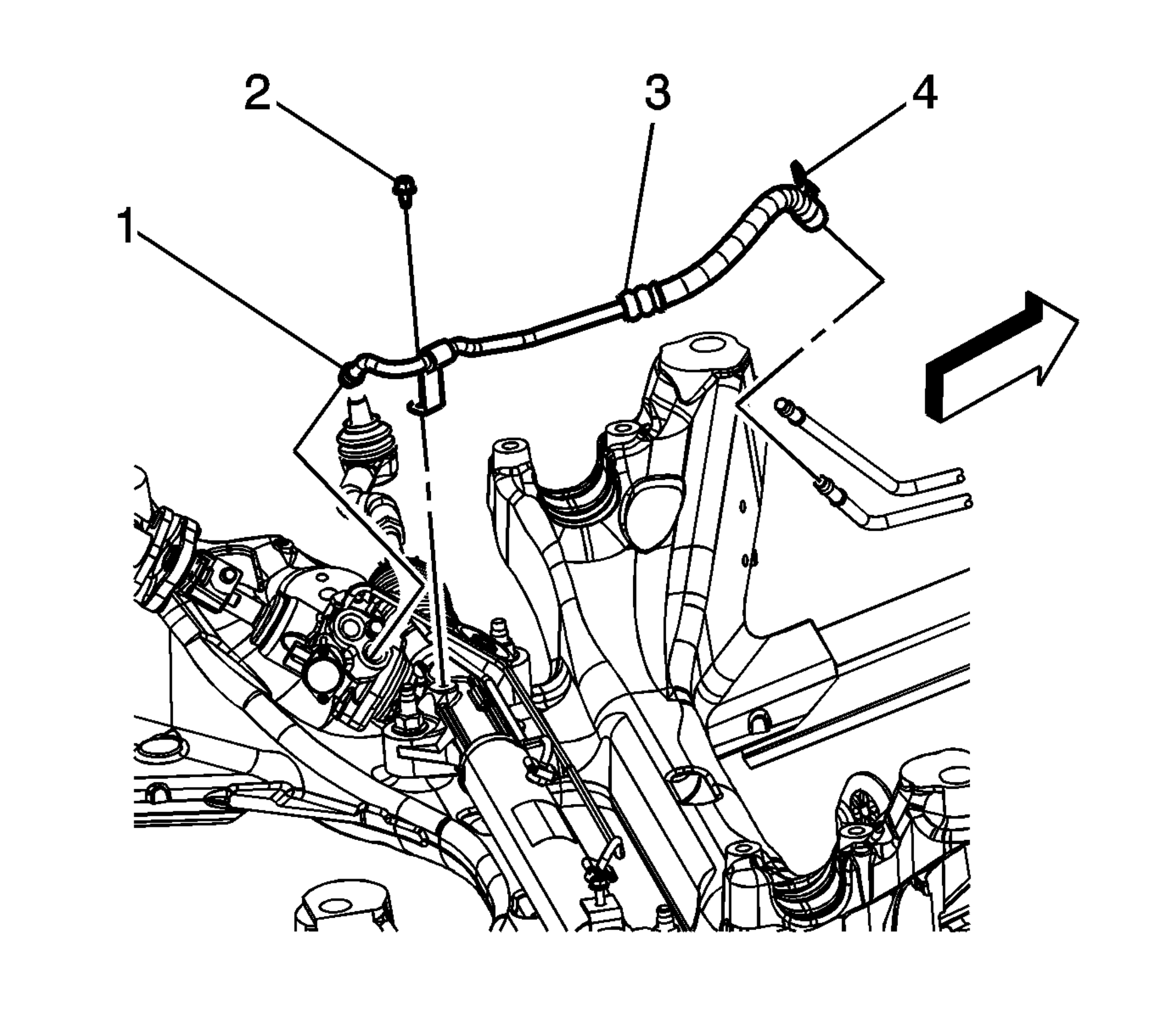

    8. Fig 2: View of Steering Gear Outlet Hose Assembly
    GM1974320Courtesy of GENERAL MOTORS CORP.
  8. Remove the power steering gear outlet hose bracket bolt (2).
  9. Disconnect the power steering gear outlet hose (4) from the power steering cooler hose.
  10. Remove the power steering gear outlet hose fitting (1) from the steering gear.
  11. Support the front frame with jackstands as needed.
  12. Remove the left and right side engine mount bolts from the front frame. Refer to Engine Mount Replacement - Left Side (AWD) or Engine Mount Replacement - Left Side (RWD) and Engine Mount Replacement - Right Side (w/AWD) or Engine Mount Replacement - Right Side (w/RWD) .
  13. Disconnect any electrical harnesses from the front frame as needed.
  14. Disconnect the power steering gear solenoid electrical connector.
  15. Remove the front frame bolts. Refer to Front Frame Replacement (Rear Wheel Drive) or Front Frame Replacement (All Wheel Drive) .
  16. Slowly lift the vehicle on the hoist until there is enough room to remove the steering gear from the vehicle.
  17. Remove the power steering gear outlet hose (3) from the vehicle.
