Headlamp Washer Pump Replacement (V Series CE4)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

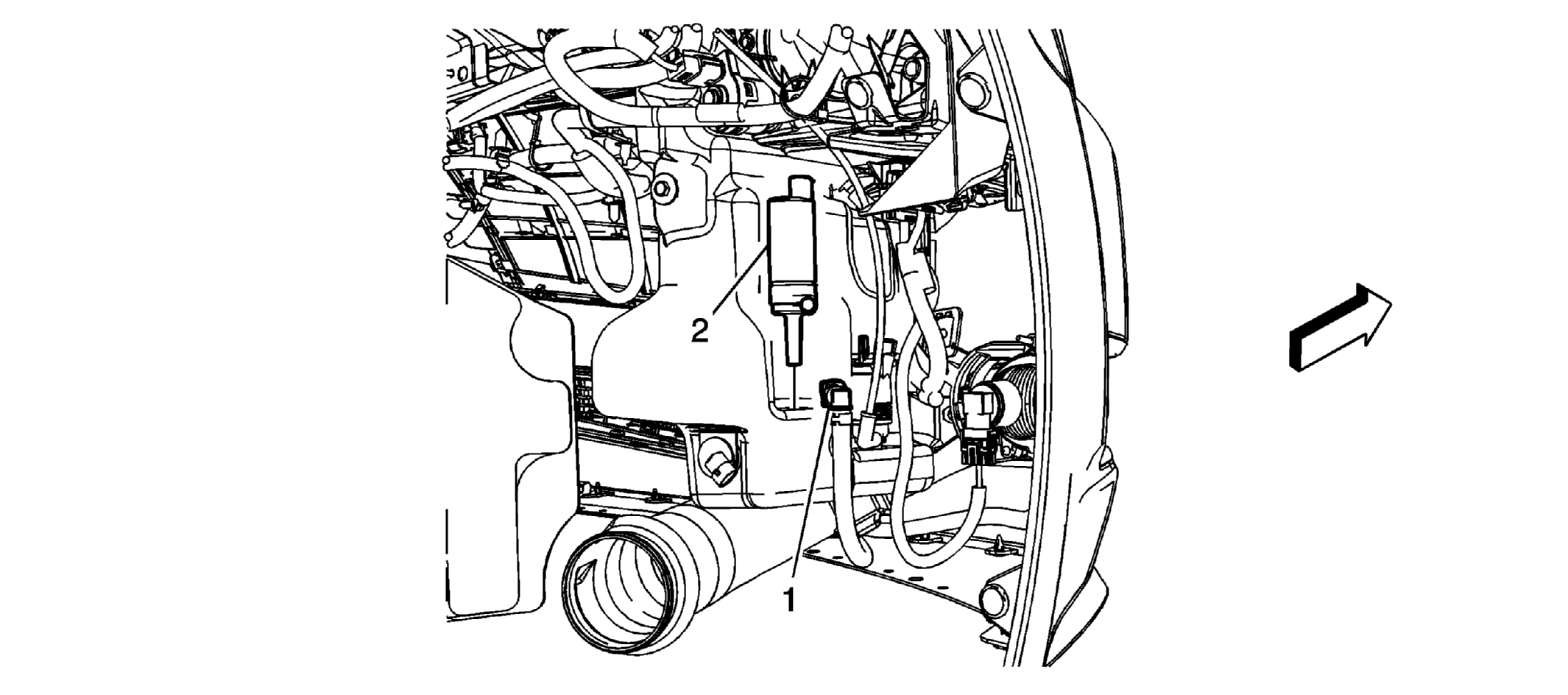

Fig 1: Headlamp Washer Pump Replacement (V Series CE4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .
1	Headlamp Washer Pump Hose Procedure Place a clean suitable clean container under the washer container to secure spillage when removing the headlamp washer pump from the windshield washer solvent container. Press the retainer clip and remove the headlamp washer hose from the washer pump spout. Disconnect the electrical connection at the headlamp washer pump.
2	Headlamp Washer Pump Procedure Using two flat-bladed tools placed under the headlamp washer pump, gently pry upward in order to release the pump from the container grommet. Release and remove the headlamp washer pump and contain the windshield washer solvent. Discard the old headlamp washer pump grommet.

Callout

Component Name

Preliminary Procedure:
Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .

Headlamp Washer Pump Hose

Procedure

Place a clean suitable clean container under the washer container to secure spillage when removing the headlamp washer pump from the windshield washer solvent container.
Press the retainer clip and remove the headlamp washer hose from the washer pump spout.
Disconnect the electrical connection at the headlamp washer pump.

Headlamp Washer Pump

Procedure

Using two flat-bladed tools placed under the headlamp washer pump, gently pry upward in order to release the pump from the container grommet.
Release and remove the headlamp washer pump and contain the windshield washer solvent.
Discard the old headlamp washer pump grommet.
