Rear Side Door Outside Handle Housing Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

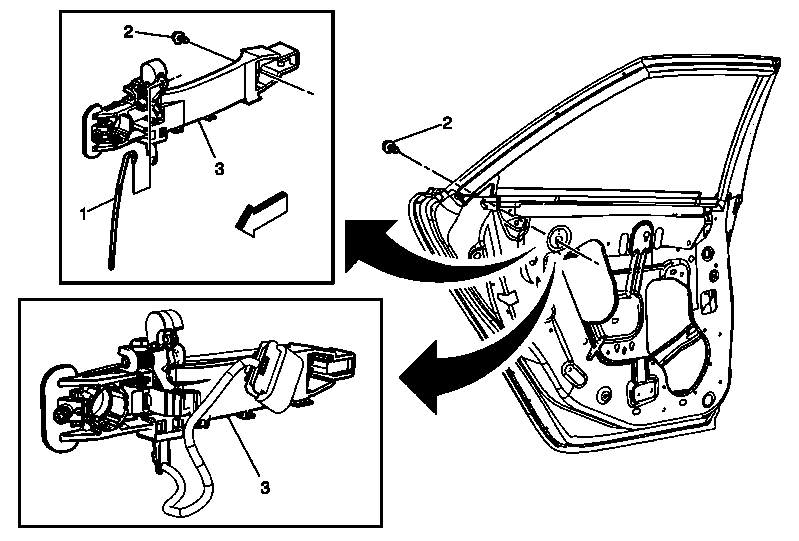

Fig 1: Rear Side Door Outside Handle Housing Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the outside door handle. Refer to Rear Side Door Outside Handle Replacement .
1	Rear Side Door Handle Housing Bolt Cover
2	Rear Side Door Handle Housing Bolt NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in)
3	Rear Side Door Handle Housing Bolt Tighten: 7 N.m (62 lb in)
4	Rear Side Door Lock Handle Rod Procedure Use a small flat bladed tool to lift the electrical connector lock and disconnect the electrical connector. Remove the housing through opening in the inner panel. Transfer the lock cylinder to the new housing.
5	Rear Side Door Handle Housing
