Rear Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

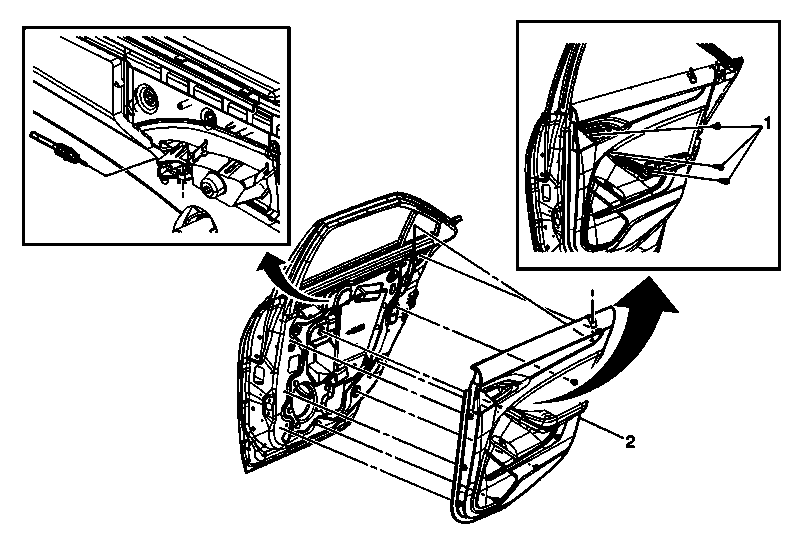

Fig 1: Identifying Rear Side Door Trim Panel Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .
1	Rear Side Door Trim Panel Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tip: Remove the inside handle bezel to access screw. Tighten: 2 N.m (18 lb in)
2	Rear Side Door Trim Panel Procedure Use a door trim tool or equivalent to aid in the removal of the door trim. Disconnect the inside handle cable. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure:
Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .

Rear Side Door Trim Panel Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip: Remove the inside handle bezel to access screw.

Tighten: 2 N.m (18 lb in)

Rear Side Door Trim Panel

Procedure

Use a door trim tool or equivalent to aid in the removal of the door trim.
Disconnect the inside handle cable.
Disconnect the electrical connectors.
