Windshield Defroster Nozzle Duct Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

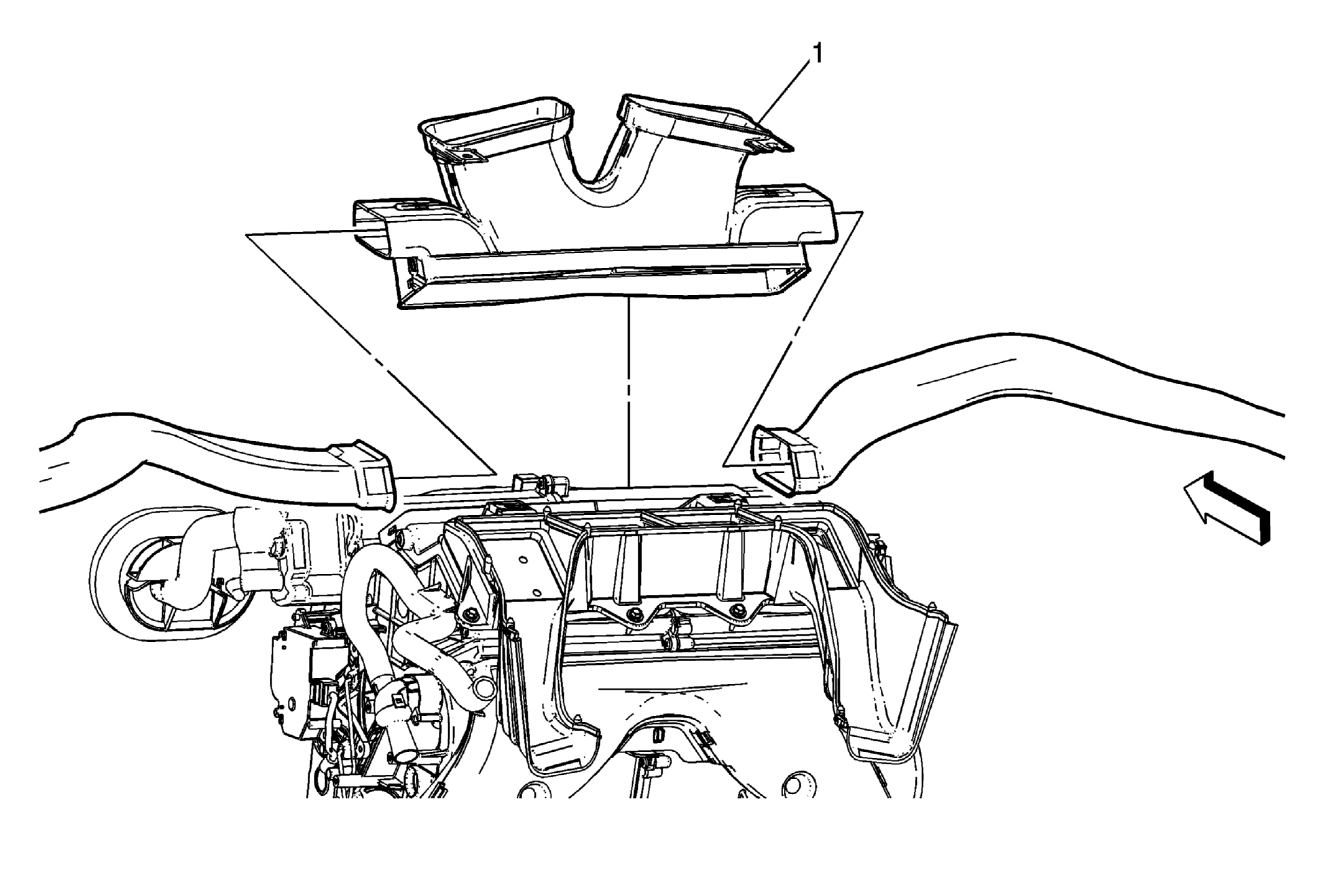

Fig 1: Windshield Defroster Nozzle Duct Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove I/P carrier assembly. Refer to Instrument Panel Carrier Replacement .
1	Windshield Defroster Nozzle Duct. Procedure Squeeze center mounting points of defroster nozzle to release from HVAC module. Ensure the defroster nozzle is connected to side defroster ducts upon installation.

Callout

Component Name

Preliminary Procedure:
Remove I/P carrier assembly. Refer to Instrument Panel Carrier Replacement .

Windshield Defroster Nozzle Duct.

Procedure

Squeeze center mounting points of defroster nozzle to release from HVAC module.
Ensure the defroster nozzle is connected to side defroster ducts upon installation.
