Side Window Defogger Outlet Duct Replacement - Left Side
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

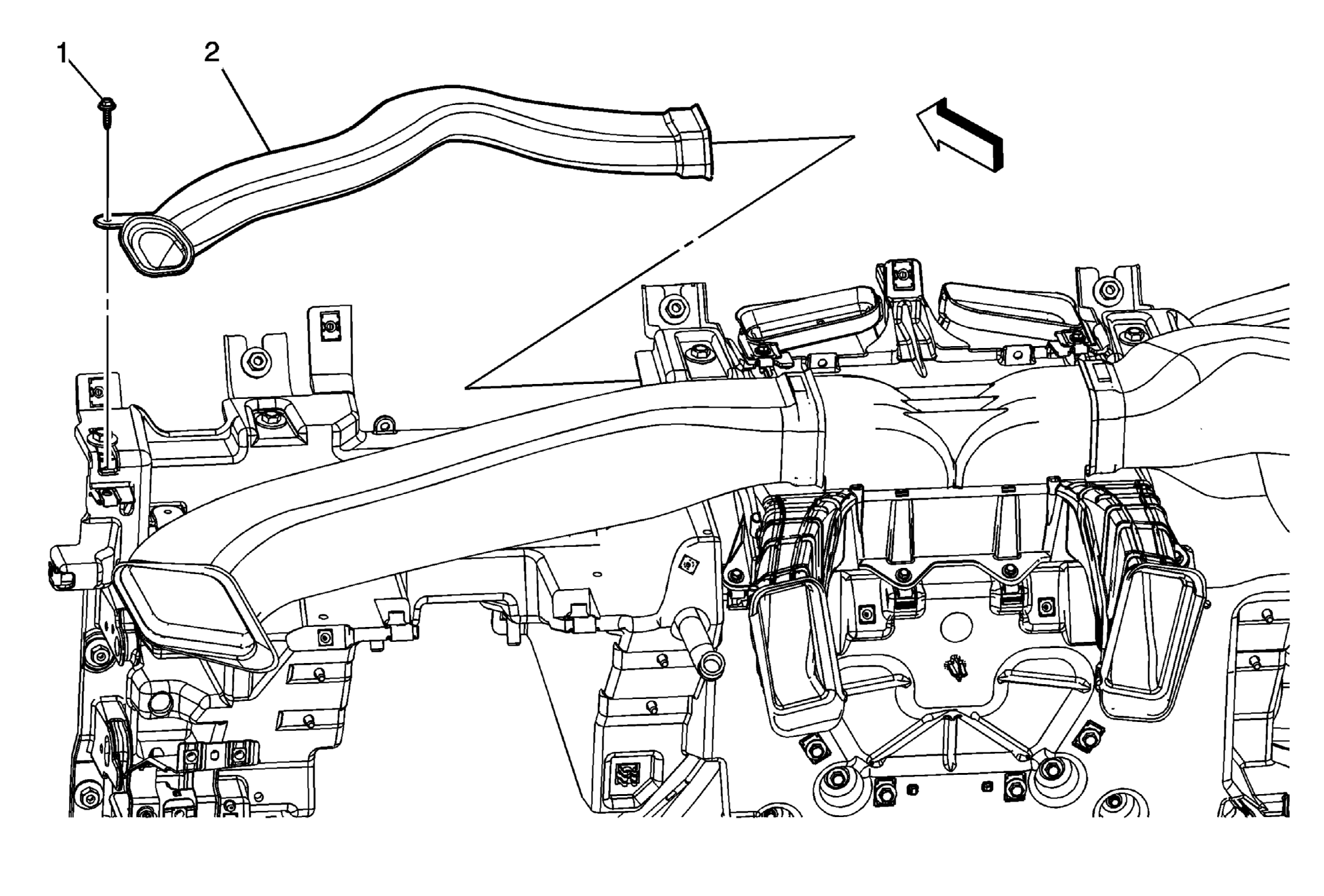

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . |
|
| 1 | Left Side Window Defogger Duct Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (17 lb in) |
| 2 | Left Side Window Defogger Duct |
