Mode Control Cable Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

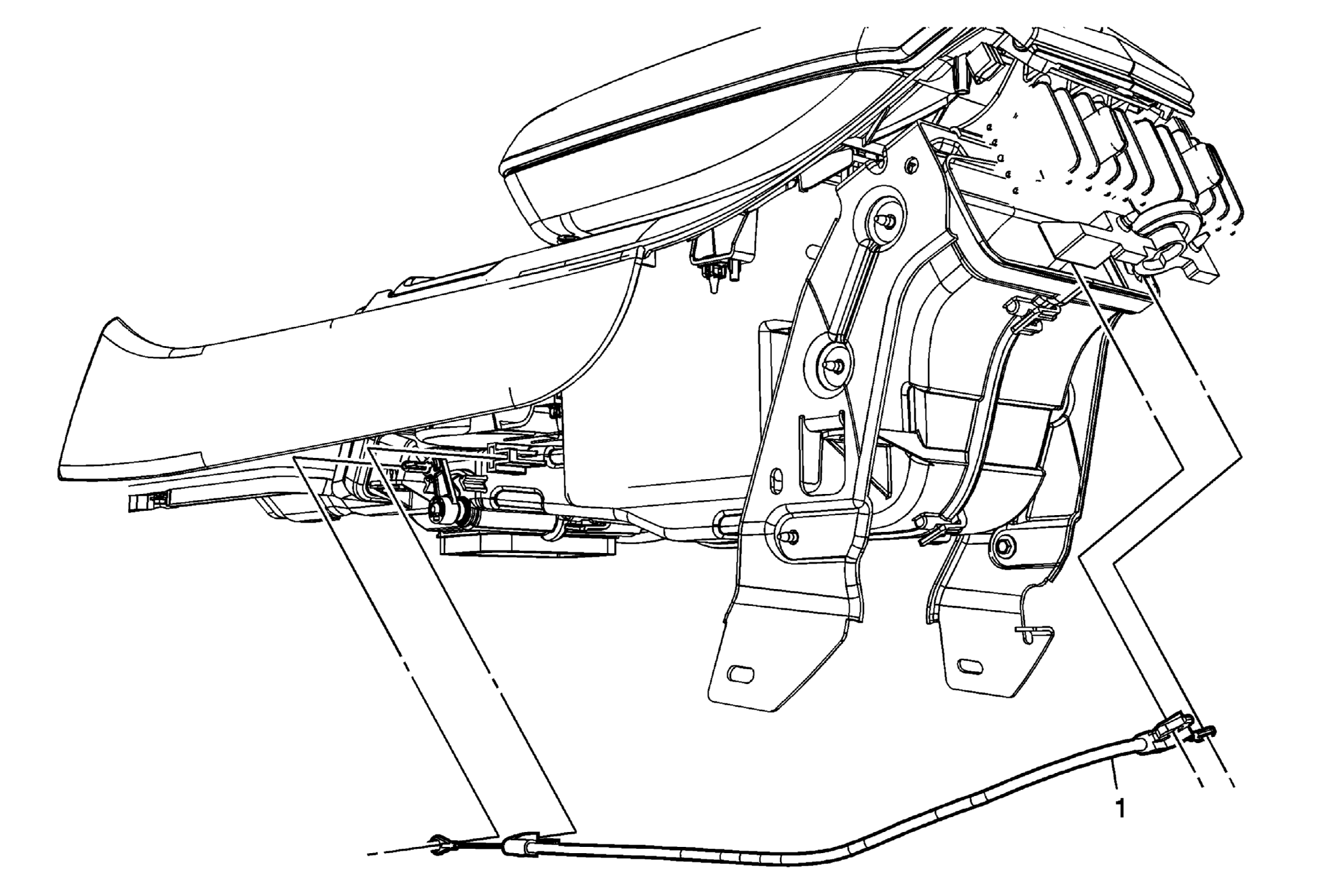

Fig 1: Mode Control Cable Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor console rear compartment. Refer to Front Floor Console Rear Compartment Replacement . Remove the left front floor console side panel. Disconnect any electrical connectors from the front floor console.
1	Mode Control Cable Assembly. Procedure Squeeze the retaining tabs to release the mode cable from the mounting points. Note the routing of the mode control cable for proper installation.

Callout

Component Name

Preliminary Procedure

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor console rear compartment. Refer to Front Floor Console Rear Compartment Replacement .
Remove the left front floor console side panel.
Disconnect any electrical connectors from the front floor console.

Mode Control Cable Assembly.

Procedure

Squeeze the retaining tabs to release the mode cable from the mounting points.
Note the routing of the mode control cable for proper installation.
