Front Floor Console Rear Compartment Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

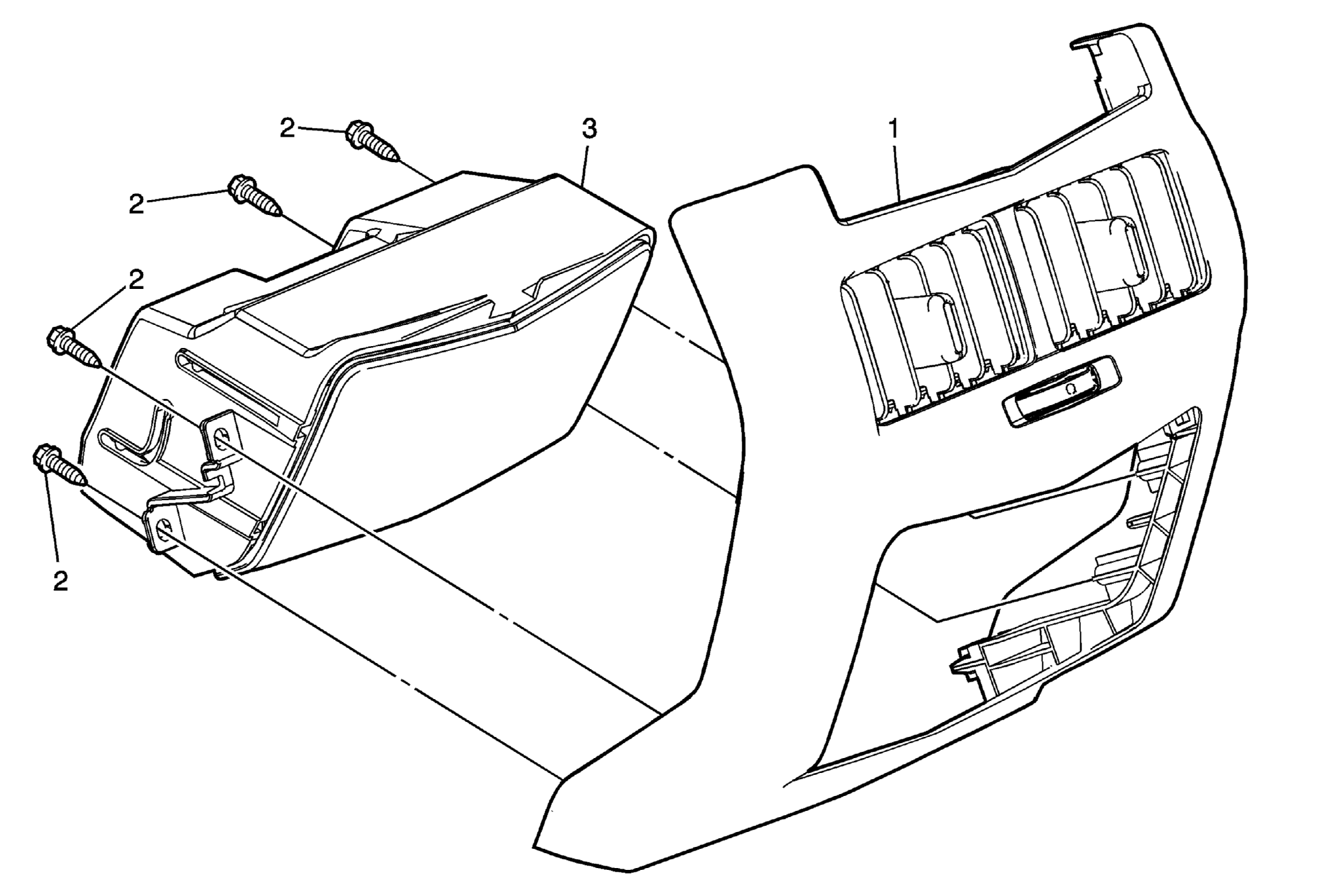

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Rear Cover Refer to Front Floor Console Rear Cover Replacement . |
| 2 | Front Floor Console Rear Compartment Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Front Floor Console Rear Compartment Assembly |
